पाइप ब्रांच रिइंफोर्सिंग पैड फॉर्मूला और पीडीएफ चार्ट 90 डिग्री एंड 45 डिग्री

Pipe branch Reinforcing paid formula 90°and 45° and PDF chart

90 degree pipe branch reinforcing paid

45 degree pipe branch reinforcing paid

and download PDF

पाइप में RF पैड लगाने का तरीका बताया गया है या ड्राइंग के जरिए बिल्कुल आसान
फॉर्मूला से पाइप में आप लगा सकते हैं और मार्किंग कर सकते हैं 45 डिग्री और 90 डिग्री में
यह ड्राइंग पीडीएफ चार्ट दिया गया है आप इसे डाउनलोड करके आसानी से RF पैड का
मार्किंग कर सकते हैं पाइप ब्रांच जब लगाया जाता है तो उसमें यह RF पैड लगाने का काम में
आता है जो पाइप को सपोर्ट करता है एक तरह से यह पाइप का सपोर्ट भी बोल सकते हैं

How to install RF pad in pipe is explained or very easy through drawing

With formula you can apply and mark in pipe in 45 degree and 90 degree

This drawing pdf chart is given you can download it and use RF pad easily.

Marking can be done when the pipe branch is installed, then it is used for installing RF pad in it.

Comes who support the pipe, in a way it can also say support of the pipe.

90 degree pipe branch reinforcing paid
90 degree pipe branch reinforcing paid

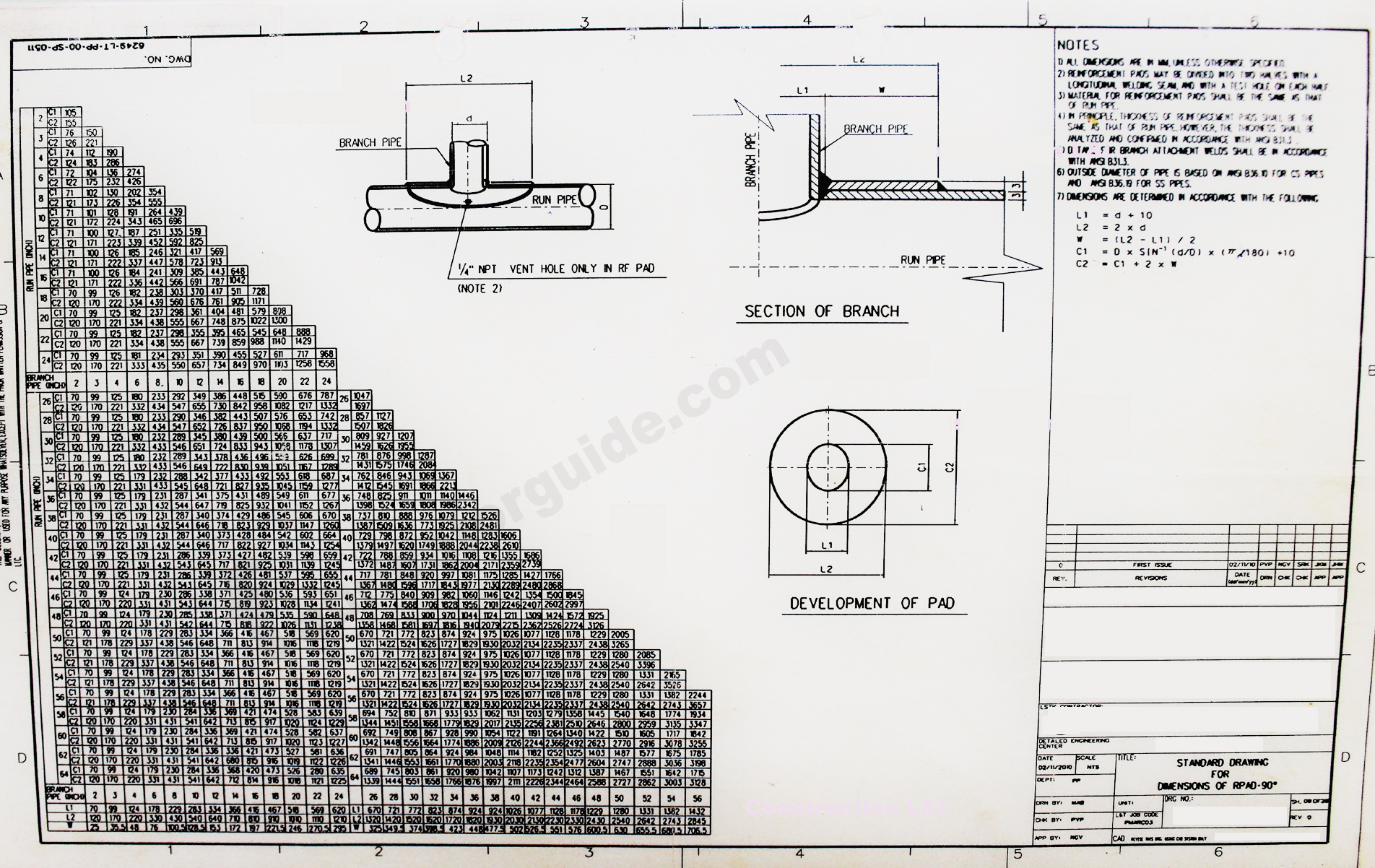

Pipe branch Reinforcing pad formula 90° PDF chart
90° degree pipe branch RF pad drawing
It is designed to mark just 45 degree reinforcing pad
first marking C1  after marking C2
after  L1 and L2
after  W
Pipe branch Reinforcing pad formula 45° PDF chart
👇
45° degree pipe branch RF paid drawing
Pipe branch Reinforcing paid formula 90°and 45°
example
C1 ÷ 2 =  90° The position
C1 ÷ 2 = A    sin × 67.5° × A = 67.5 The position
C1 ÷ 2 =  A   sin × 45° × A    =  45° The position
C1 ÷ 2 =  A   sin × 22.2 × A  = 22.5 The position
L1 ÷ 2 =  90° The position
L1 ÷ 2 = A    sin × 67.5° × A = 67.5 The position
L1 ÷ 2 =  A   sin × 45° × A    =  45° The position
L1 ÷ 2 =  A   sin × 22.2 × A  = 22.5 The position
