Piping elbow center formula any radius | 1D 1.5D 2D 3D 4D 5D 6D any degree
90 डिग्री से लेकर के 10 डिग्री तक एल्बो सेंटर लिए यह फार्मूला दिया गया है
This formula is given for elbow center from 90 degrees to 10 degrees.
This formula includes long radius elbow and
Short radius elbow both formulas are given
Inch × formula will have to be done = elbow center will be determined
Elbow center formula
How to use this formula long radius
Example
pipe inch ” × 38.1 = LR elbow center 90° Degree
4″ pipe 4 × 38.1 = 152.4 mm elbow center LR 90° Degree
How to use this formula short radius
Example
4″ pipe 4 × 25. 4 = 101.6 mm elbow center SR 90° Degree
4″ pipe 4 × 10.52 = 42 mm elbow center SR 45° Degree

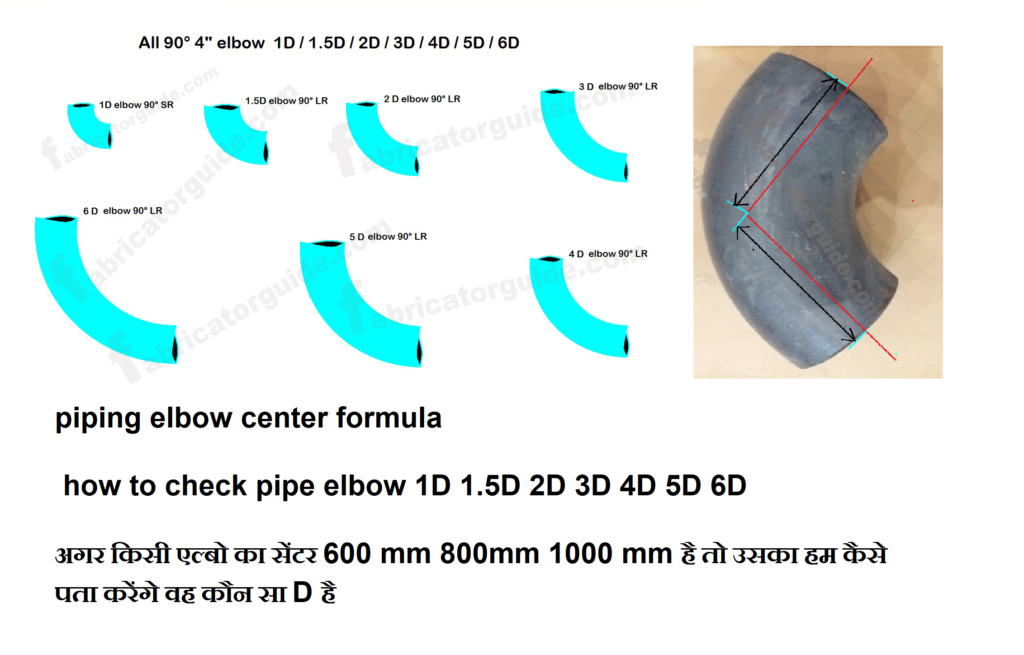

how to find piping elbow 1D 1.5D 2D 3D 4D 5D 6D
how to find piping elbow 3.9 D elbow radius
how to find piping elbow 3.9 D elbow radius
90° Long radius elbow center ÷ 90° short radius elbow center
Example
अगर किसी एल्बो का सेंटर 600 mm है तो उसका हम कैसे पता करेंगे वह कौन सा D है
If the center of an elbow is 600 mm, then how do we know which D it is?
6″ inch elbow
Long radius Elbow center 600 mm
6″ × 25.4 = 152.2 mm
600 ÷ 152.2 = 3.9 D elbow
अगर किसी एल्बो का सेंटर 800 mm है तो उसका हम कैसे पता करेंगे वह कौन सा D है
If the center of an elbow is 800 mm, then how do we know which D it is?
6″ inch elbow
Long radius elbow center 800
6″ × 25.4 = 152.2 mm
800 ÷ 152.2 = 5.2 D elbow
अगर किसी एल्बो का सेंटर 1000 mm है तो उसका हम कैसे पता करेंगे वह कौन सा D है
If the center of an elbow is 1000 mm, then how do we know which D it is?
6″ inch elbow
Long radius elbow center 1000
6″ × 25.4 = 152.2 mm
1000 ÷ 152.2 = 6.5 D elbow
