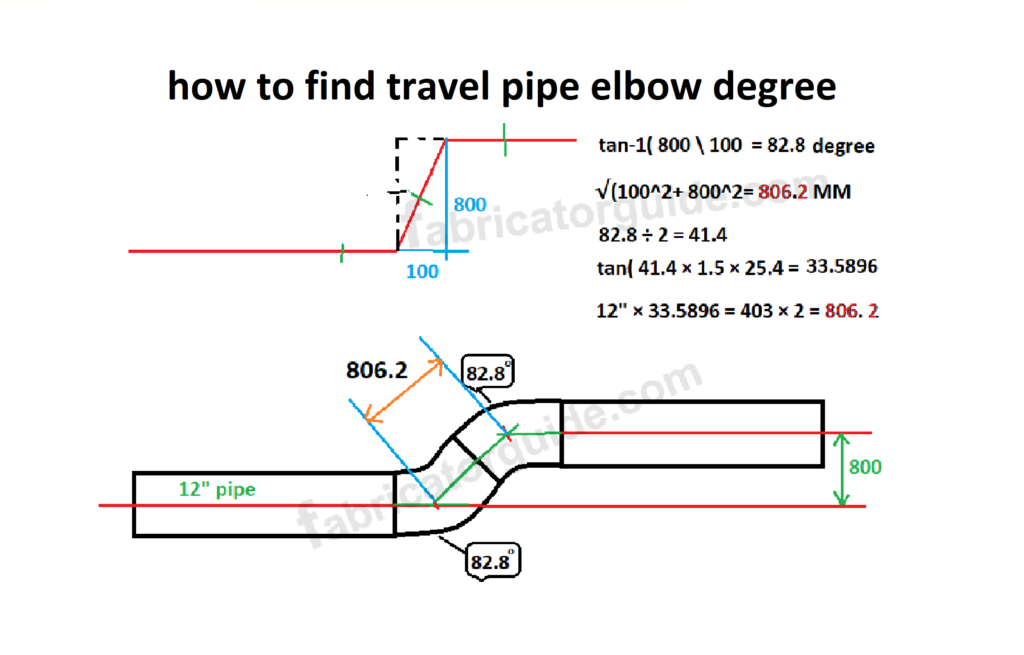

# how to find travel pipe elbow degree | rolling pipe elbow degree calculation

how to find travel pipe elbow degree

rolling pipe elbow degree calculation

how to calculation piping elbow center any degree

how to fabrication rolling pipe

any degree elbow center formula Available only 2 dimension  pipe size 12 inch  and pipe center to center  800 dimension

this is fix pipe not move 800 dimension

how to find elbow degree

how  to calculate travel length

degree pipe fitting direct  2  elbow no middle pipe first check 90 degree elbow fitting

12 × 38.1 = 457.2  × 2 = 914.4

pipe center to center dimension 800

not fitted 90 degree elbow

check the 45 degree elbow

12 × 15.7 = 188.4 × 2 = 376.8

this is not fitted 45 degree elbow check the another degree

i take the 100 mm triangle dimension  and calculate

√( 800^2 + 100^2 = 806.2 mm travel length  tan-1( 800 ÷ 100 = 82.8 degree

calculate the 82.8 degree elbow center

82.8 ÷ 2 = 41.4 degree

tan( 41.4 ) × 1.5 × 25.4 = 33.5896

12 × 33.5896 = 403.1 × 2 = 806.2  mm travel length

calculation complete

elbow degree,   82.8 degree

pipe face to face dimension

100 + 806.2 = 906.2 mm  running pipe dimension

now calculation complete
