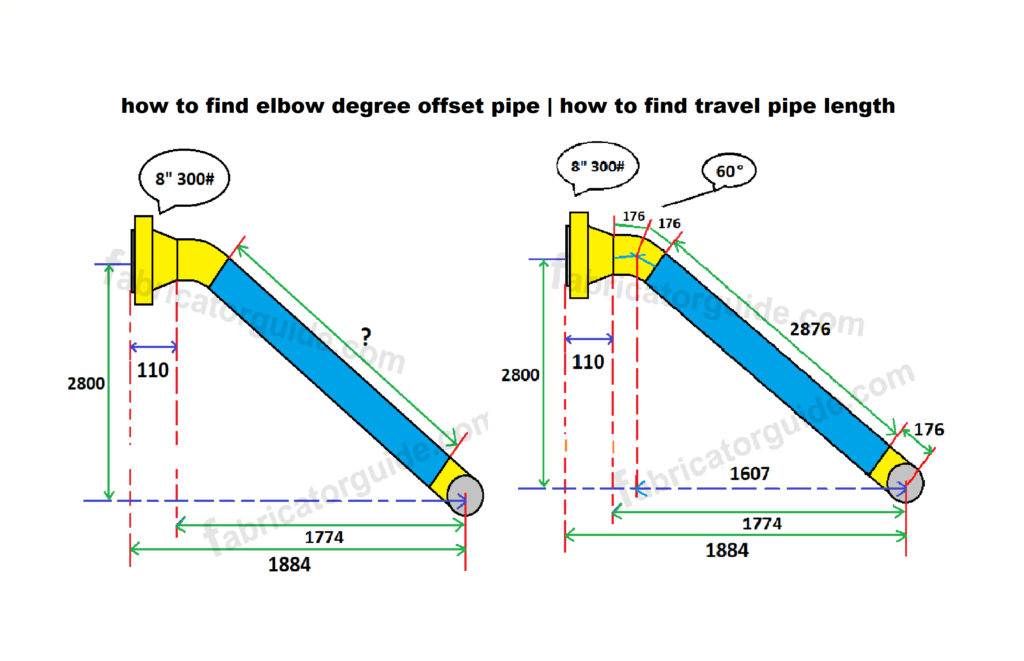

how to find elbow degree offset pipe | how to find travel pipe length
how to find travel pipe length
how to find elbow degree offset pipe
how to calculation piping elbow center any degree
how to fabrication rolling pipe
any degree elbow center formula
how to calculation offset pipe degree
how to find offset pipe elbow degree
pipe size 8 inch
flange dimension 110 mm
equal Tee 8″ dimension 176 mm
running pipe dimension 1884 — 110 mm = 1774
how to calculate offset pipe degree
how to find offset pipe elbow degree
tan‾1( 2800 ÷ 1774 = 57.6 degree
57.6 degree elbow center formula
57.6 ÷ 2 = 28.8
tan( 28.8 ) × 1.5 × 25.4 = 20.9
8 inch × 20.9 = 167 mm elbow center
1774 – 167 = 1607 mm
how to calculation offset pipe travel length
8 inch × 20.9 = 167 mm elbow center
1774 – 167 = 1607 mm
tan‾1( 2800 ÷ 1607 = 60 degree
elbow 60 degree is
60 degree elbow center formula any size
60 ÷ 2 = 30 degree
tan( 30 ) × 1.5 × 25.4 = 22
8 inch × 22 = 176 mm elbow center 60 degree
√( 2800 ^2 + 1607^2 = 3228.3
3228.3 – 176 elbow center = 3052.3
3052.3 – 176 Tee dimensions = 2876 travel pipe length
