How to make one cut miter pipe bend

How to fabricate one cut miter elbow with pipe

How to make one cut 90 miter bend

90 degree miter pipe bend 1 cut formula

miter bend calculator formula

1 cut miter pipe bend formula

How to marking one cut miter pipe bend 8 center line

How to marking one cut miter pipe bend 16 center line

90 degree miter pipe bend 1 cut formula

इस तरह का एक कट माइटर बेंड कैसे बनाते हैं फार्मूला के जरिए

How to make a cut miter bend like this using the formula

90 degree miter pipe bend 1 cut formula

एक कट माइटर बैंड बनाने के लिए 8 इंची पाइप का कैलकुलेशन किया गया है

Calculated 8 inch pipe to make one cut miter band

How to fabricate one cut miter elbow with pipe

8 pipe OD 219 होता है मगर 220 mm लिया गया है

8 inch pipe OD 220 mm

एक कट माइटर बैंड किसी भी डिग्री में बनाने के लिए इस तरह कैलकुलेशन करें

To make a cut miter band in any degree, do the calculation like this

90 degree one cut miter bend marking

90° ÷ 2 = 45°

tan( 45 ) × 220 = 220 mm

220 ÷ 2 = 110 mm

90 डिग्री का बैंड बनाने के लिए हॉफ OD का भी प्रयोग कर सकते हैं डायरेक्ट

To make a 90 degree band, you can also use half OD directly

पाइप के एंड से  ऊपरी हिस्सा में 110 mm पर एक मार्किंग करें

और 110 mm पर एक राउंड मार्किंग करें

Make a marking at 110 mm from the end of the pipe at the top

And make a round marking at 110 mm

90 degree miter pipe bend 1 cut formula

नीचे साइड110 mm की दूरी पर एक मार्किंग करें

Make a marking at a distance of 110mm on the bottom side

How to marking one cut miter pipe bend  8 center line

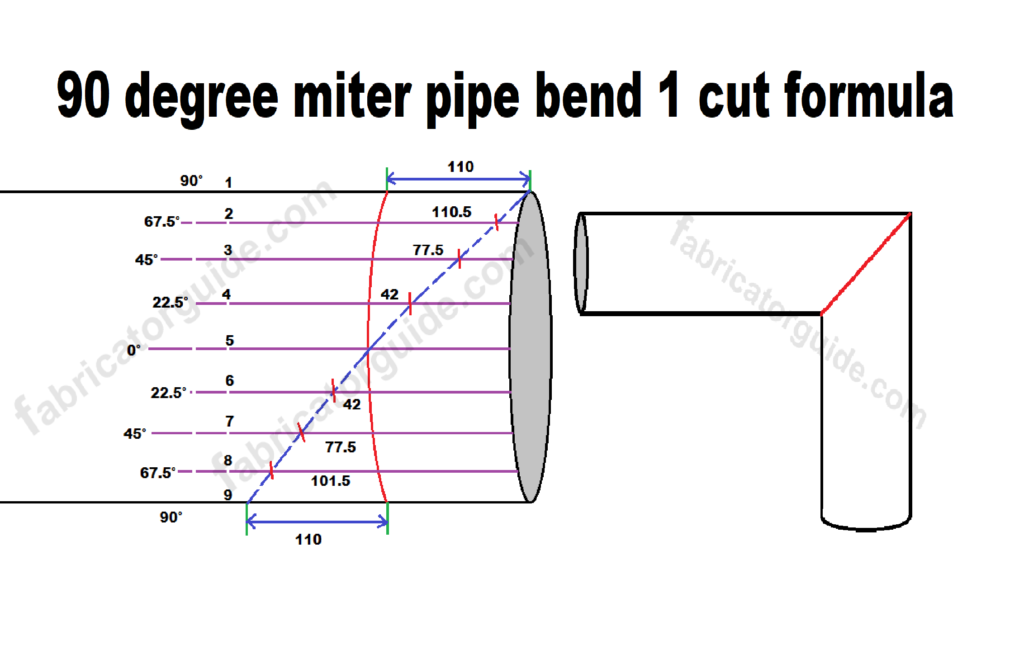

इस तरह 8 सेंटर लाइन मार्किंग करें जैसे चित्र में दिखाया गया है

Mark the 8 center line as shown in the picture

Pipe OD 219 × 3.142 = 688

688 ÷ 8 = 86 mm

सभी सेंटर लाइन 86 mm पर आएगा

All center lines will come at 86 mm

सभी सेंटर लाइन पर इस तरह डिग्री लिखें जैसे ऊपर दिए गए चित्र में दिखाया गया है

Write degrees on all center lines as shown in the picture above

How to marking one cut miter pipe bend 4 and 8 center line

45 डिग्री सेंटर लाइन का कट बैक इस तरह कैलकुलेशन करें

Calculate the cut back of 45 degree center line like this







One Cut miter bend formula | 90 degree miter pipe bend 1 cut formula 16 center line



Sin( 45 ) × 110 = 77.5 mm 45 degree center line cut back



67.5  and  22.5 डिग्री सेंटर लाइन का कट बैक इस तरह कैलकुलेशन करें

Calculate the cut back of 67.5 and 22.5 degree center line like this

Sin( 67.5 ) × 110 = 101.5 mm 67.5 degree center line cut back

Sin( 22.5 ) × 110 = 42 mm 22.5 degree center line cut back













इस तरह मार्किंग करने के बाद एक पट्टी के जरिए राउंड मार्किंग सभी पॉइंट पर मिलाय

और उसके बाद पाइप को कटिंग करें गैस कटर या ग्राइंडर की जारी



After marking in this manner, join all the round marking points using a strip

and then cut the pipe using a gas cutter or grinder
