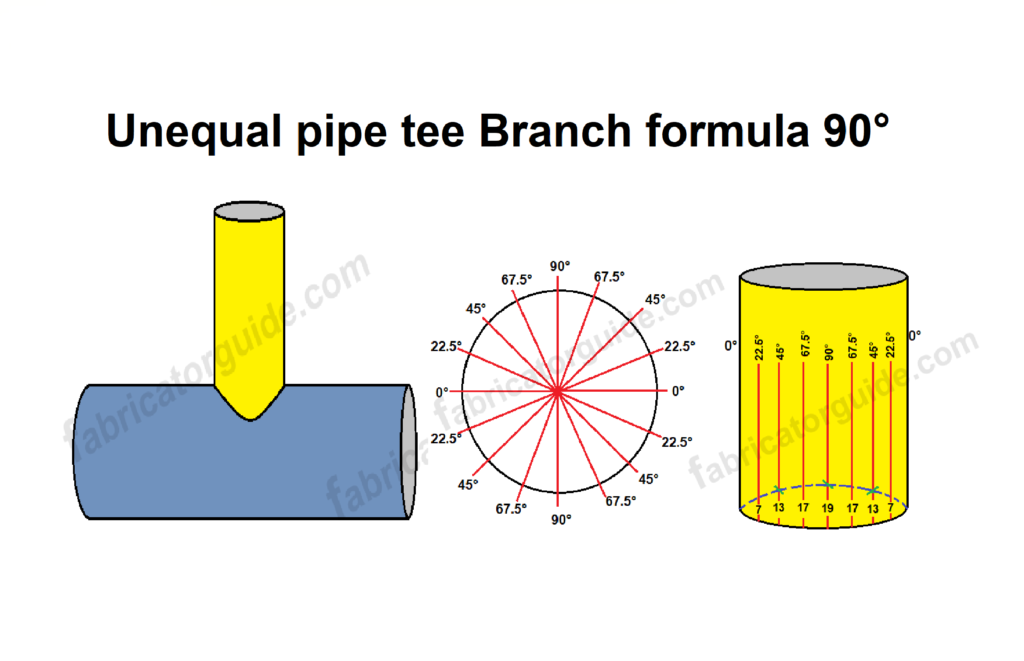

Unequal pipe tee Branch formula 90° | Unequal pipe saddle tee formula
Unequal tee Branch formula 90 degree
90° degree
6 inch × 4 inch pipe tee branch formula
Branch OD × Branch OD ) ÷ ( Header OD × 4 = cut back
Example 6″ × 4″
4″ Branch pipe OD = 114 mm
114 × 114 = 12996 ÷ 672
6″ Header pipe OD 168 × 4 = 672
12996 ÷ 672 = 19.33 cut back mm
19.33 mm यह कट बैक 90 डिग्री के सेंटर लाइन पर मार्किंग करें
इस तरह कट बैक कैलकुलेशन करने के बाद
8 सेंटर लाइन में मार्किंग करने के लिए इस तरह कैलकुलेशन करें
पाइप के ऊपर इस तरह 8 सेंटर लाइन मार्किंग करें जैसे चित्र में दिखाया गया है
और सभी सेंटर लाइन पर डिग्री लिखे जैसे चित्र में दिखाया गया है
45° degree center line cut back calculation formula
Sin(45) × 19.33 = 13.6 mm cut back
यह 13.6 mm कट पैक 45 डिग्री के सेंटर लाइन पर मार्किंग करें जैसे चित्र में दिखाया गया है
Mark this cut back on the center line of 90 degrees
After calculating the cut back in this way
To mark 8 center lines, do the calculation in this way
Mark 8 center lines on the pipe as shown in the picture
And write degrees on all the center lines as shown in the picture
45° degree center line cut back calculation formula
Sin(45) × 19.33 = 13.6 mm cut back
Mark this 13.6 mm cut pack on the center line of 45 degrees as shown in the picture
16 सेंटर लाइन में मार्किंग करने के लिए इस तरह कैलकुलेशन करें
Sin( 22.5°) × 19.33 = 7.39 mm cut back 22.5° center line marking
Sin( 45°) × 19.33 = 13.6 mm cut back 45° center line marking
Sin( 67.5°) × 19.33 = 17.8 mm cut back 67.5° center line marking
तो फ्रेंड इस तरह से कैलकुलेशन करके 8 सेंटर लाइन या 16 सेंटर लाइन में अनइक्वल टी ब्रांच बना सकते हैं
अगर यह फार्मूला आपको समझ में ना आए तो हमारे यूट्यूब चैनल पर वीडियो देख सकते हैं इसके बारे में यूट्यूब चैनल पर बताया गया है
So friends, by doing calculations like this, you can make unequal T branch in 8 center lines or 16 center lines
If you do not understand this formula, then you can watch the video on our YouTube channel. It has been explained on the YouTube channel.
