How to fabricate miter cut elbow with formula 90°

How to fabricate miter cut elbow with formula 180°

180 degree miter cut pipe elbow formula

90 miter cut pipe band formula

90 elbow 3 cut Miter pipe band formula

180 elbow 6 cut Miter pipe band formula

Miter cut elbow formula with pipe

Any degree miter cut elbow formula

180 degree miter cut pipe elbow formula

how to make  90° degree miter cut pipe band wit formula

इस तरह का माइटर कट एल्बो 3 कट 4 कट 5 कट 6 कट कैसे मार्किंग करते हैं

90 डिग्री में मार्किंग करना हो या 180 डिग्री में मार्किंग करना हो या कोई भी डिग्री में मार्किंग करना हो बिल्कुल आसान फार्मूला के जरिए आप मार्किंग कर सकते हैं

How to mark this type of miter cut elbow 3 cut 4 cut 5 cut 6 cut any cut

Marking in 90 degree or marking in 180 degree or marking in any degree, you can do marking through very simple formula

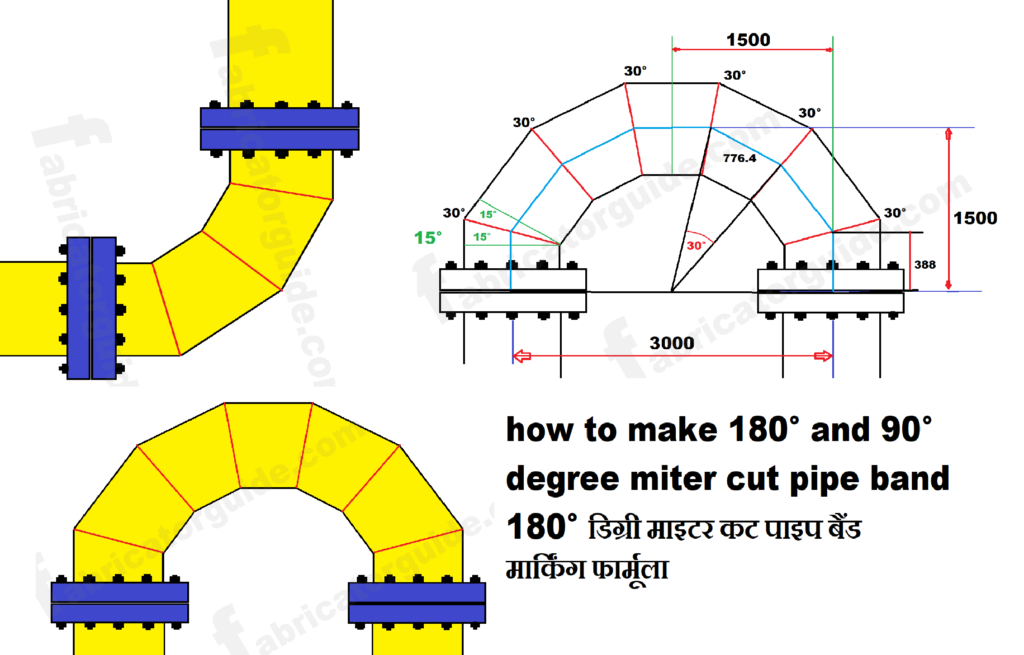

how to make 180° and 90° degree miter cut pipe band wit formula

यह डिजाइन में देख सकते हैं 180 डिग्री माइटर कट एल्बो का मार्किंग करके दिखाया गया है

और 6 कट में मार्किंग किया गया है

माइटर कट मार्किंग करने के लिए हमें मिडिल पीस डायमेंशन और साइड पीस डायमेंशन का कैलकुलेशन करना पड़ता है

In this design, you can see that 180 degree miter cut elbow has been marked

And marking has been done in 6 cuts

To do miter cut marking, we have to calculate the middle piece dimension and side piece dimension

how to make 180° and 90° degree miter cut pipe band wit formula

अगर आपको सेम डिजाइन में मार्किंग करना हो तो

आपको एक पाइप से दूसरे पाइप का डाइमेंशन लेना होता है

जैसे देख सकते हैं कि यह पाइप में एक पाइप के सेंटर से दूसरे पाइप के सेंटर डायमेंशन 3 मीटर दिया गया है

और आपको एल्बो का रेडियस डायमेंशन लेना पड़ेगा जैसे इसमें देख सकते हैं

यह एल्बो का रेडियस डायमेंशन 1500 mm दिया गया है

If you want to do marking in the same design then

you have to take the dimension of one pipe from the other pipe

As you can see in this pipe, the center dimension from one pipe to the center of the other pipe is given as 3 meters

And you have to take the radius dimension of the elbow as you can see in this

The radius dimension of this elbow is given as 1500 mm

how to make 180° and 90° degree miter cut pipe band wit formula

180 डिग्री माइटर कट एल्बो मार्किंग फार्मूला

180 डिग्री का हमें माइटर कट बनाना है,  और 6 कट में बनाना है

तो हम 180 को 6 से डिवाइड करेंगे

180° ÷ 6 = 30° degree

जितना भी माइटर कटिंग होगा वह सब 30 डिग्री में माइटर कटिंग किया जाएगा

We have to make a mitre cut of 180 degrees, and we have to make it in 6 cuts

So we will divide 180 by 6

180° ÷ 6 = 30° degree

All the miter cutting will be done in 30 degrees

मिडिल पीस और साइट पीस डायमेंशन फार्मूला

Middle piece and Site Piece Dimension Formula

Miter degree ÷ 2  sin( degree ) × elbow radius × 2 = middle piece

Middle piece ÷ 2 = side piece

Miter Degree 30° ÷ 2 = 15°

Elbow radius 1500 × 2 = 3000

Sin( 15 ) × 3000 = 776.4 mm middle piece dimension

776.4 ÷ 2 = 388.2 mm side piece dimension

माइटर डिग्री कट बैक फार्मूला

Miter degree cut back formula

tan( Degree ÷ 2 ) × pipe OD answer ÷ 2 = C B cut back

Miter degree 30° ÷ 2 = 15° degree

16″ inch pipe OD 406.4

tan( 15 ) × 406.4 = 108.8 ÷ 2 = 54.4 mm CB cut back

how to make any degree miter cut pipe band wit formula

अगर इस तरह का सेंटर मिडिल पीस बड़ा साइज में लगाना हो तो फर्मूला सेम हीं
रहेगा लेकिन साइड पीस के बाद आपको जितना पाइप का लेन्थ बढ़ाना हो उतना
बड़ा सकते हैं देख सकते हैं किस तरीका से ये डिजाइन बनाया गया है

If this type of center middle piece is to be applied in big size, then formula beans are the same.
But after the side piece, you have to increase the length of the pipe as much as
You can see how this design has been made.

how to make 90° degree miter cut pipe band wit formula

इस तरह का 90 डिग्री में मार्किंग करना हो तो आप मार्किंग कर सकते हैं
या आप कितना डिग्री में भी बनाना चाहते हैं उतना डिग्री में मार्किंग कर सकते हैं सेम फॉर्मूला के जरिए

90 डिग्री माइटर कट मार्किंग फार्मूला

90 डिग्री का हमें माइटर कट बनाना है और 6 कट में बनाना है तो हम 180 को 6 से डिवाइड करेंगे

90° ÷ 3 = 30° degree

जितना भी माइटर कटिंग होगा वह सब 30 डिग्री में माइटर कटिंग किया जाएगा

how to make 90° degree miter cut pipe band wit formula

मिडिल पीस और साइट पीस डायमेंशन फार्मूला

Middle Piece and Site Piece Dimension Formula

Miter degree ÷ 2  sin( degree ) × elbow radius × 2 = middle piece

Middle piece ÷ 2 = side piece

Miter Degree 30° ÷ 2 = 15°

Elbow radius 1500 × 2 = 3000

Sin( 15 ) × 3000 = 776.4 mm middle piece dimension

776.4 ÷ 2 = 388.2 mm side piece dimension

मास्टर डिग्री कट बैक फार्मूला

master degree cut back formula

tan( Degree ÷ 2 ) × pipe OD answer ÷ 2 = CB cut back

Miter degree 30° ÷ 2 = 15° degree

16″ inch pipe OD 406.4

tan( 15 ) × 406.4 = 108.8 ÷ 2 = 54.4 CB cut back

वीडियो देखने के लिए यहां क्लिक करें

Click here to view video 👇

https://www.youtube.com/watch?v=68erEE2rkXY&t=55s

वीडियो देखने के लिए यहां क्लिक करें

Click here to view video 👇

https://www.youtube.com/watch?v=WD-0k9uZ_KM
