PIPE TO ELBOW STRAIGHT BRANCH 90° PDF CHART
Pipe to elbow straight branch 16″ 18″ 20″ 22″
Pipe to elbow straight branch cut back chart
Pipe to elbow straight branch fabrication with PDF chart
How to fabricate pipe tee branch with 90° elbow
Equal pipe to elbow straight branch 32 center line marking
Unequal pipe to elbow straight branch
यह पीडीएफ चार्ट के जरिए पाइप के ऊपर एल्बो का ब्रांच बिलकुल आसानी से अब आप मार्किंग कर सकते हैं
इक्वल हो या अनइक्वल हो ऑल साइजेस में आपको पीडीएफ चार्ट मिल जाएगा मार्किंग करने का तरीका बताया गया है
With this PDF chart, the elbow branch above the pipe is very easy
now you can do marking, be equal or unqualified in all sizes. You will get a PDF chart

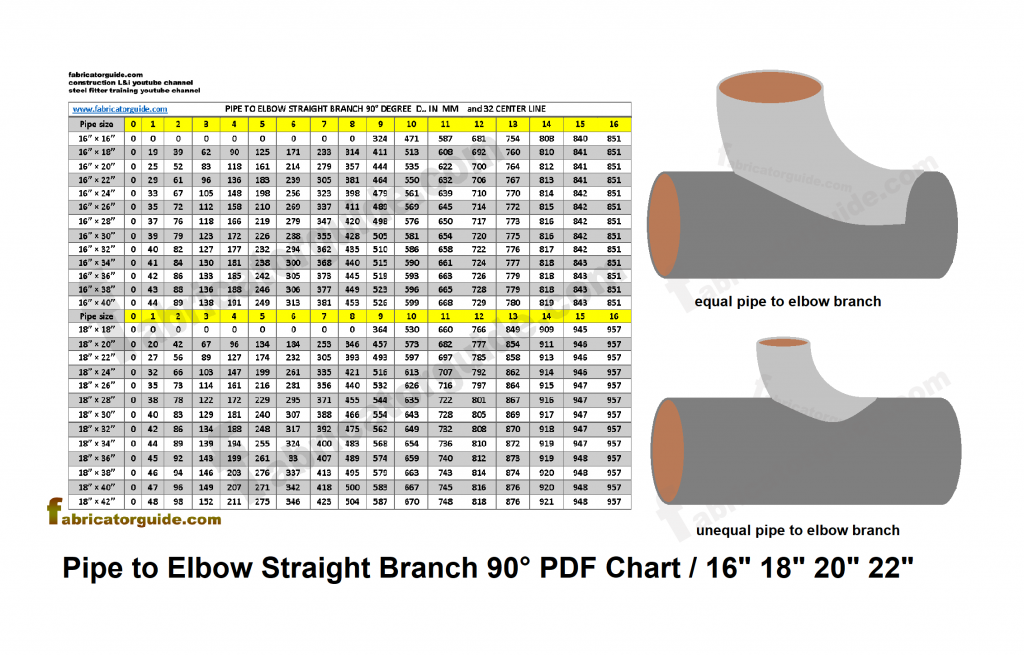

Pipe to elbow straight branch marking with cut back dimensions chart
Chart description
Pipe size 16″ Elbow size 16″
Pipe size 18″ Elbow size 16″
Pipe size 20″ Elbow size 16″
Pipe size 22″ Elbow size 16″
Pipe size 24″ Elbow size 16″
Pipe size 26″ Elbow size 16″
Pipe size 28″ Elbow size 16″
Pipe size 30″ Elbow size 16″
Pipe size 32″ Elbow size 16″
Pipe size 34″ Elbow size 16″
Pipe size 36″ Elbow size 16″
Pipe size 38″ Elbow size 16″
Pipe size 40″ Elbow size 16″
Chart description
Pipe size 18″ Elbow size 18″
Pipe size 20″ Elbow size 18″
Pipe size 22″ Elbow size 18″
Pipe size 24″ Elbow size 18″
Pipe size 26″ Elbow size 18″
Pipe size 28″ Elbow size 18″
Pipe size 30″ Elbow size 18″
Pipe size 32″ Elbow size 18″
Pipe size 34″ Elbow size 18″
Pipe size 36″ Elbow size 18″
Pipe size 38″ Elbow size 18″
Pipe size 40″ Elbow size 18″
Pipe size 42″ Elbow size 18″
Pipe to elbow straight branch marking with cut back dimensions chart
Chart discrimination
Pipe size 20″ Elbow size 20″
Pipe size 22″ Elbow size 20″
Pipe size 24″ Elbow size 20″
Pipe size 26″ Elbow size 20″
Pipe size 28″ Elbow size 20″
Pipe size 30″ Elbow size 20″
Pipe size 32″ Elbow size 20″
Pipe size 34″ Elbow size 20″
Pipe size 36″ Elbow size 20″
Pipe size 38″ Elbow size 20″
Pipe size 40″ Elbow size 20″
Pipe size 42″ Elbow size 20″
Pipe size 44″ Elbow size 20″
Chart discrimination
Pipe size 22″ Elbow size 22″
Pipe size 24″ Elbow size 22″
Pipe size 26″ Elbow size 22″
Pipe size 28″ Elbow size 22″
Pipe size 30″ Elbow size 22″
Pipe size 32″ Elbow size 22″
Pipe size 34″ Elbow size 22″
Pipe size 36″ Elbow size 22″
Pipe size 38″ Elbow size 22″
Pipe size 40″ Elbow size 22″
Pipe size 42″ Elbow size 22″
Pipe size 44″ Elbow size 22″
Pipe size 46″ Elbow size 22″
एल्बो के ऊपर 32 सेंटर लाइन मार्किंग करें इस तरीका से
और उसके बाद जीरो पॉइंट के बाद 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 एक्साइड डायमेंशन रहेगा और सेम ऐसे ही दूसरे साइड भी डायमेंशन रहेगा
पीडीएफ चार्ट में 1 से लेकर 16 तक आपको कटबैक मिलेगा जो एल्बो के ऊपर एक साइड से मार्किंग करना है
Mark the 32 center line above the elbow in this way
And then after zero point 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 the one side dimension will remain and the other side will also be dimensioned
In the PDF chart from 1 to 16 you will get a cutback marking from one side above the elbow
