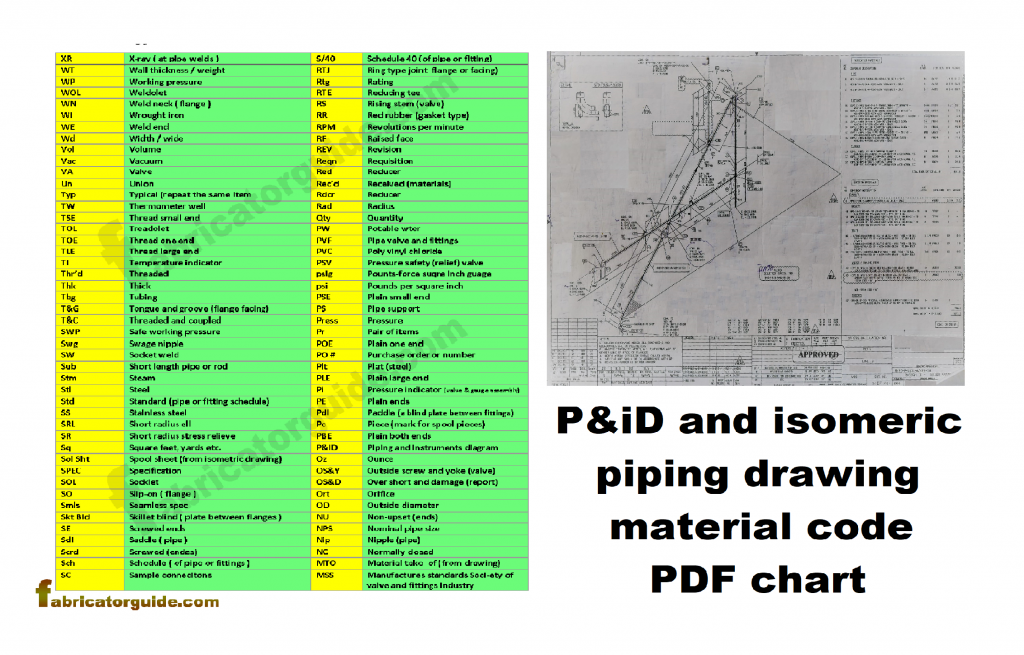

P & i D diagram fittings material code

Isometric pipe drawing materiel code

Pipeline Fluid Service Code of meaning

WWR = WASTEWATER (GENERAL USE)

WOL = WAST OIL

VNT = VENT (GENERAL USE)

UWR = UTILITY WATER

UAR = UTILITY AIR

TFL = THERMAL FLUID

SWR = SERVICE WATER

STO = STORM DRAIN

SNY = SANITARY SEWER

STM = STEAM 125 – 220 #

SMB = SODIUM METABISULFITE

SLP = STEAM 125 #

SOH = SODIUM HYDROXIDE

SOC = SODIUM CARBONATE

SHC = SODIUM HYPOCHLORITE

SAL = SULFURIC ACID, <75%

SAH = SULFURIC ACID, >75%

PWR = POTABLE WATER

PVR = PROCESS VAPOR

PSL = PROCESS SLURRY / SLUDGE

KOH = POTASSIUM HYDROXIDE

KF = POTASSIUM FLUORIDE

PHA = PHOSPHORIC ACID

PFD = POLYMER FEED

PAR = PROCESS AIR

OIL = OIL ( GENERAL USE)

N2 = NITROGEN

NIA = NITRIC ACID

MEL = METHANOL

LSY = LIME SLURRY

IFD = INDUSTRIAL RAW FEED

IAR = INSTRUMENT AIR

HPX = HYDROGEN PEROXIDE

HF = HYDROFLUORIC ACID

HCL = HYDROCHLORIC ACID

FOL = FUEL OIL

FIW = FILTER INFLUENT WATER

FEW = FILTER EFFLUENT WATER

FEC = FERRIC CHLORIDE

EFF = EFFLUENT GENERAL USE

DSL = DIESEL FUEL

DRN = PROCESS DRAIN

DBW = DIRTY BACKWASH WATER

CL2 = CHLORINE

CHC = CALCIUM HYPOCHLORITE

CO2 = CARBON DIOXIDE

CFD = CAUSTIC RAW (GENERAL USE)

CBW = CLEAN BACKWASH WATER

CAR = COMPRESSED AIR

CAF = CALCIUM FLUORIDE

BAR = BACKWASH AIR

ASO = ACID SOLUBLE ORGANICS

AMS = AMMONIUM SULFATE

ABF = AMMONIUM BI FLUORIDE

AMH = AMMONIUM HYDROXIDE

AMN = AMMONIUM NITRATE

ALM = ALUMINUM SULFATE
