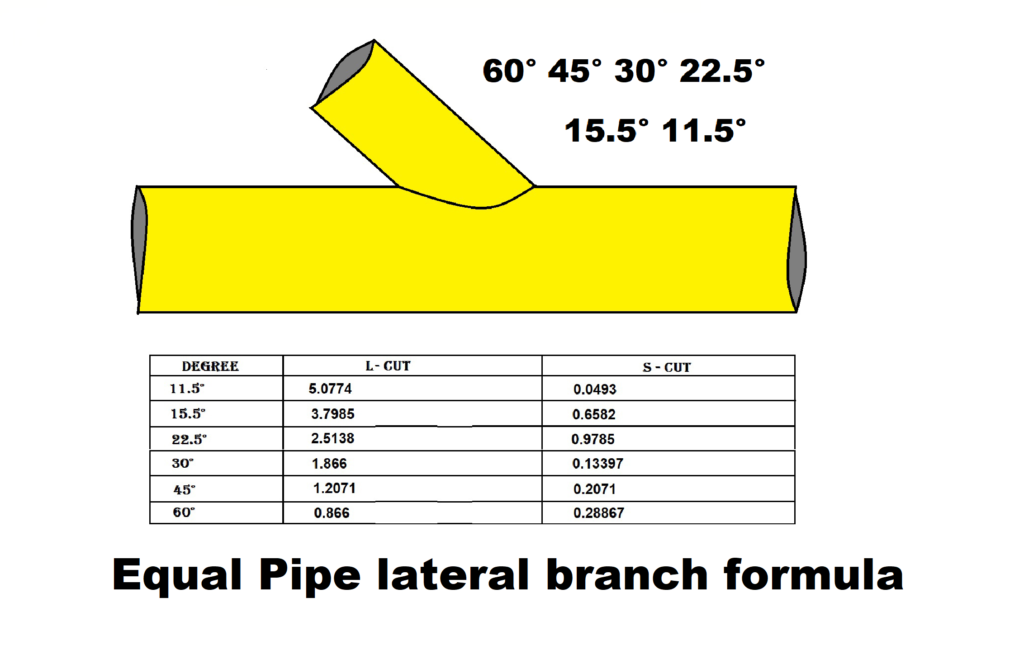

Equal Pipe lateral branch formula | 60°, 45°, 30° 22.5°, 15.5°, 11.5°,
The formula has been given in different degrees to make a lateral pipe branch
लेटरल पाइप ब्रांच बनाने के लिए अलग-अलग डिग्री में फार्मूला बताया गया है

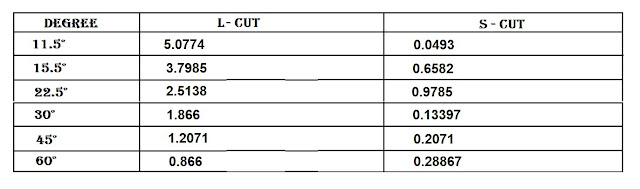

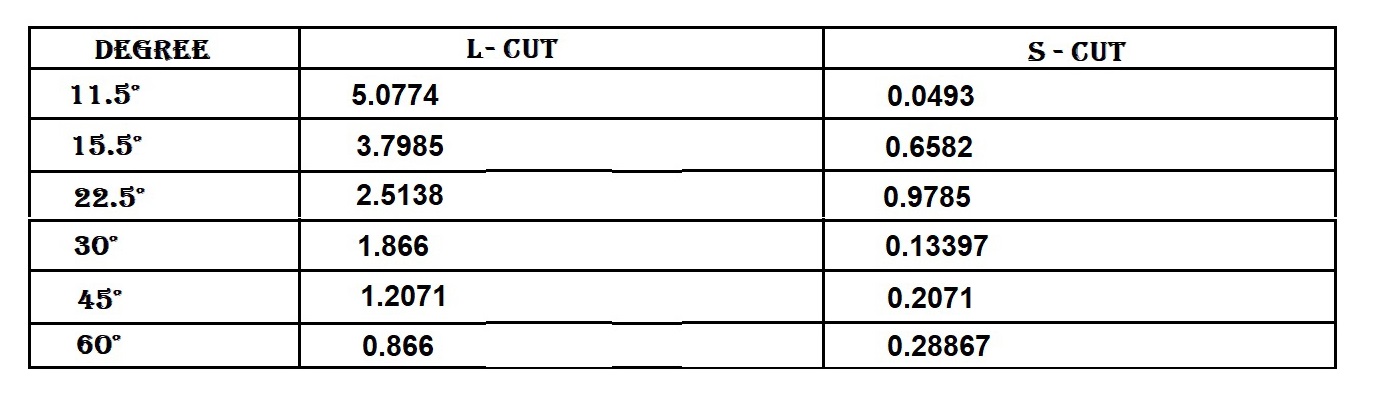

Equal pipe lateral branch formula
Lateral pipe branch formula Equal pipe
Equal pipe Lateral branch formula 11.5°
Equal pipe Lateral branch formula 15.5°
Equal pipe Lateral branch formula 22.5°
Equal pipe Lateral branch formula 30°
Equal pipe Lateral branch formula 45°
Equal pipe Lateral branch formula 60°
Regardless of how many inch equal lateral tea branches are to be created,
OD × formula is to be used.
L – for long cut
S – for Short cut
Example 45° degree lateral pipe tee branch marking
Pipe OD × 1.2071 = L cut marking
Pipe OD × 0.2071 = S cut marking
L कट यानी की लॉन्ग कट
S कट यानी की शॉर्ट कट
L cut means long cut
S cut means short cut
यह फार्मूला के जरिए हमें सिर्फ दो ही कट बैक मिला है लॉन्ग कट और शॉर्ट कट
Through this formula we have got only two cut backs, long cut and short cut.
यह फार्मूला के जरिए सिर्फ 4 सेंटर लाइन में ही आप मार्किंग कर सकते हैं
Through this formula you can do marking only in 4 center lines
Equal pipe lateral pipe branch marking 8 center line
अगर आपको 8 सेंटर लाइन में मार्किंग करना हो तो कैसे करेंगे
If you have to mark in 8 center lines, how will you do it?
Example 45° degree lateral tee branch marking
Pipe OD × 1.2071 = L cut marking
Pipe OD × 0.2071 = S cut marking
Sin( 45 ) × L dimensions = 45° center cut back dimensions
sin( 45 ) = 0.707106
0.707106 × L = marking L side 45° degree center line cut back
0.707106 × S = marking S side 45° degree center line cut back
Equal pipe lateral pipe branch marking 16 center line
अगर आपको 16 सेंटर लाइन में मार्किंग करना हो तो कैसे करेंगे
If you have to mark in 16 center lines, how will you do it?
Example 45° degree lateral tee branch marking
Pipe OD × 1.2071 = L cut marking
Pipe OD × 0.2071 = S cut marking
sin( 22.5 ) = 0.382683
sin( 45 ) = 0.707106
sin( 67.5 ) = 0.923879
0.382683 × L = marking L side 22.5° degree center line cut back
0.707106 × L = marking L side 45° degree center line cut back
0.923879 × L = marking L side 67.5° degree center line cut back
0.382683 × S = marking S side 22.5° degree center line cut back
0.707106 × S = marking S side 45° degree center line cut back
0.923879 × S = marking S side 67.5° degree center line cut back
