Miter cut pipe bend 60 degree | 60 degree miter cut elbow 2″ to 10″

Please share post

Miter cut elbow 60 degree cut back chart

60 degree miter cut bend fabricate with PDF chart

Miter cut pipe bend 60 degree 2″ 3″ 4″ 6″ 8″ 10″

60 degree miter cut elbow

60 degree miter cut elbow 2 cut 3 piece

60 degree miter cut elbow 3 cut 4 piece

60 degree miter cut elbow 4 cut 5 piece

60 degree miter cut elbow 5 cut 6 piece

Elbow Radius L R  2 D

60 degree miter cut elbow  8 center line

60 degree miter cut elbow  16 center line

Pipe size.  2″ /  3″ /  4″ /  6″ /  8″  /  10″

Any degree elbow center formula  2 D radius

2D  90 degree elbow radius formula

90° ÷ 2 = 45°

tan( 45 ) × 2 × 25.4 = 50.8

Inch × 50.8 = 90 degree elbow radius

अलग-अलग डिग्री का एल्बो रेडियस पता करने के लिए हमें पहले 90 डिग्री का रेडियस कैलकुलेशन करना पड़ता है

To find elbow radius of different degrees we have to first calculate radius of 90 degrees

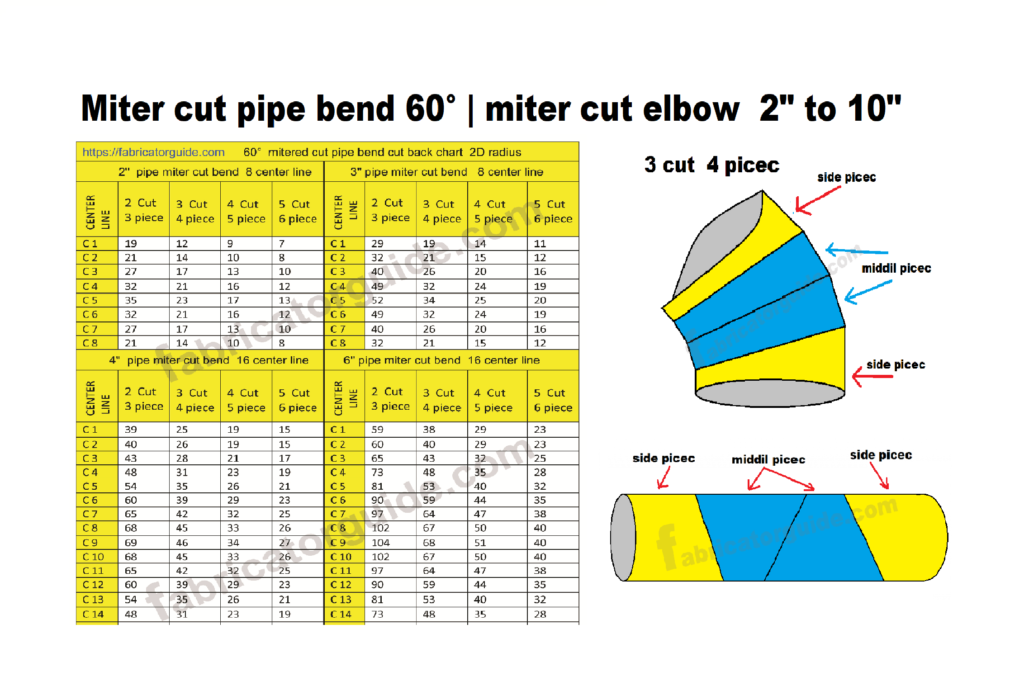

Miter cut pipe bend 60 degree | 60 degree miter cut elbow  2" to 10"

माइटर कट चार्ट में कौन से लाइन में क्या दिया गया है इसके बारे में यह बताया गया है

यह माइटर कट एल्बो 60 डिग्री 2D रेडियस में बनाया गया है

This is how the miter cut chart shows what is given in which line

This miter cut elbow is made in 60 degree 2D radius



Pipe size.  2″  and  3″

60 degree miter cut elbow

(1) C = number of  center line 8

(2) 2 cut    middle piece 2     side piece 3

(3) 3 cut    middle piece 3    side piece 4

(4) 4 cut    middle piece 4    side piece 5

(5) 5 cut    middle piece 5    side piece 6

.

.

Pipe size.  4″  and  6″

60 degree miter cut elbow

(1) C = number of  center line  16

(2) 2 cut    middle piece 2     side piece 3

(3) 3 cut    middle piece 3    side piece 4

(4) 4 cut    middle piece 4    side piece 5

(5) 5 cut    middle piece 5    side piece 6

.

.

Pipe size.  8″  and  10″

60 degree miter cut elbow

(1) C = number of  center line  16

(2) 2 cut    middle piece 2     side piece 3

(3) 3 cut    middle piece 3    side piece 4

(4) 4 cut    middle piece 4    side piece 5

(5) 5 cut    middle piece 5    side piece 6

साइड का पीस और बीच का पीस दोनों का मार्किंग C1 C2 C3 के जरिए करना है

अगर 2 कट में बनाते हैं तो 3 पीस होगा

3 कट में बनाते हैं तो 4 पीस होगा

4 कट में बनाते हैं तो 5 पीस होगा

5 कट में बनाते हैं तो 6 पीस होगा

इसी तरीका से  जितना कट में बनाना चाहेंगे उतना कट में अब बना सकते हैं जितना कट में पीडीएफ चार्ट  दिया गया है

चार्ट में जितना सेंटर लाइन में कट बैक दिया गया है उतना सेंटर लाइन पाइप के ऊपर मार्किंग करें

pipe CF ÷ 8 center line

pipe CF ÷ 16 center line

Marking of both side piece and middle piece has to be done through C1 C2 C3

If you make it in 2 cuts then there will be 3 pieces

If you make it in 3 cuts then there will be 4 pieces

If you make it in 4 cuts then there will be 5 pieces

If you make it in 5 cuts then there will be 6 pieces

In this way, you can make as many cuts as you want, PDF chart is given in the cut

Mark on the center line pipe as much as the cut back is given in the chart



60 degree miter cut elbow  16 center line

60 degree miter cut elbow  16 center line flat view









60° माइटर कट एल्बो 16 सेंटर लाइन में कैसे मार्किंग करना है ऊपर डिजाइन में दिखाया गया है

C1 C2 C3 C4 C5 यह सब कट बैक डाइमेंशन जो दिया गया है  वह कैसे मार्किंग करना है

4 कट 5 पीस में मार्किंग करके दिखाया गया है

तीन मिडिल पीस और दो साइड पीस रहेगा अगर आप इस तरह मार्किंग करते हैं तो

60° Miter Cut Elbow 16 How to mark the center line is shown in the design above

C1 C2 C3 C4 C5 All these cut back dimensions are given, how to mark them

4 cut 5 pieces are marked and shown

If you mark like this, there will be three middle pieces and two side pieces









miter cut elbow 60 degree 2 to 10



ज्यादा जानकारी के लिए आप हमारे यूट्यूब चैनल पर विकसित करें और मार्किंग करना सीखे

For more information you can visit our Youtube channel and learn marking
