Structural staircase degree calculation formula | staircase channel length calculation formula

Please share post

staircase degree calculation formula

How to fabrication staircase

Structural Steel staircase fabrication

how to find horizontal dimension of structural staircase

structural staircase degree calculation formula

structural staircase channel length calculation formula

how to fabricate a structural staircase any degree

इस तरीका से सीढ़ी बनाना हो और उसका सिर्फ ऊंचाई डायमेंशन है आपके पास

और कितना डिग्री में बनाना है वह आपको मालूम है

तो आप सीढ़ी का कर्ण डायमेंशन निकाल सकते हैं

और आधार डायमेंशन भी निकाल सकते हैं

नीचे का डायमेंशन कितना होना चाहिए कितना हम पीछे से  सीढ़ी को स्टार्ट करेंगे

वह भी डायमेंशन आप निकाल सकते हैं जिसे हम आधार डायमेंशन कहते हैं

If you want to make a staircase in this way and you only have the height dimension

And you know in what degree it has to be made

Then you can find out the hypotenuse dimension of the staircase

And you can also find out the base dimension

What should be the bottom dimension, how far behind will we start the staircase

You can also find out that dimension which we call the base dimension

full degree

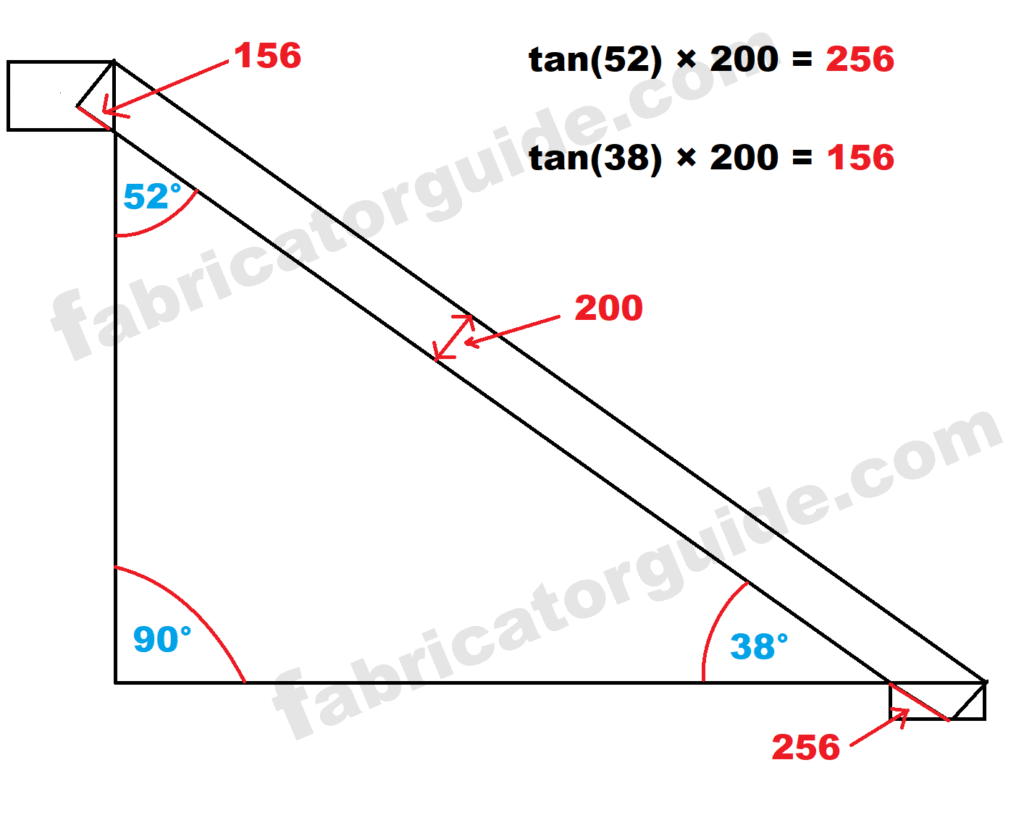

एग्जांपल हमें 38 डिग्री में स्टेयरकेस फैब्रिकेशन करना है तो इस तरह कैलकुलेशन करें

इस तरह त्रिकोण जो बनता है वह 180 डिग्री में रहता है

त्रिकोण का एक कोना हमेशा 90 डिग्री में होता है

90° + 38° = 128°

एग्जांपल देख सकते हैं कि हमें 2 डिग्री पता है एक 90 डिग्री और एक 38 डिग्री और

बाकी जो डिग्री बचेगा वह ऊपर का डिग्री हो जाएगा

180° – 128° = 52° degree  ( 1 )

इस तरह टेन थीटा के जरिए कैलकुलेशन करना है

tan( 52° = 1.2799416322

तो हमारा यह नीचे का आधार डायमेंशन निकल गया जहां से हम सीढ़ी को स्टार्ट करेंगे डाउन साइड से

1.2799416322 × 2000 = 2559 mm  ( 2  ) होरिजेंटल डाइमेंशन

उसके बाद यह आंसर के जरिए कर्ण डायमेंशन निकालेंगे आधार और लम डायमेंशन के जरिए देख सकते हैं किस तरीका से कैलकुलेशन किया गया है सेम वैसे ही आपको करना होगा

2559 × 2559 = 6548481

2000 × 2000 = 4000000

6548481 + 4000000 = 10548481

√( 2559^2 + 2000^2 = 3247 mm

√( 10548481 = 3247 mm ( 3 )  स्टेयरकेस चैनल डाइमेंशन

इस तरह कैलकुलेशन करने पर करण डाइमेंशन निकल जाएगा जिसे हम रूट डाइमेंशन भी कहते हैं

तो फ्रेंड इस तरह स्टेयरकेस का चैनल का डाइमेंशन कैलकुलेशन करेंगे

By doing calculations like this, Karan dimension will come out which we also call root dimension

So friends, this is how we will calculate the dimension of the staircase channel

उसके बाद चैनल में दोनों साइड डिग्री कटिंग करेंगे

After that, degree cutting will be done on both sides of the channel

चैनल में जब डिग्री कटिंग करेंगे तो जो ऊपर में डिग्री आया है वह डिग्री नीचे में कटिंग होगा

और जो नीचे में डिग्री आया है उतना डिग्री ऊपर साइड में कटिंग होगा

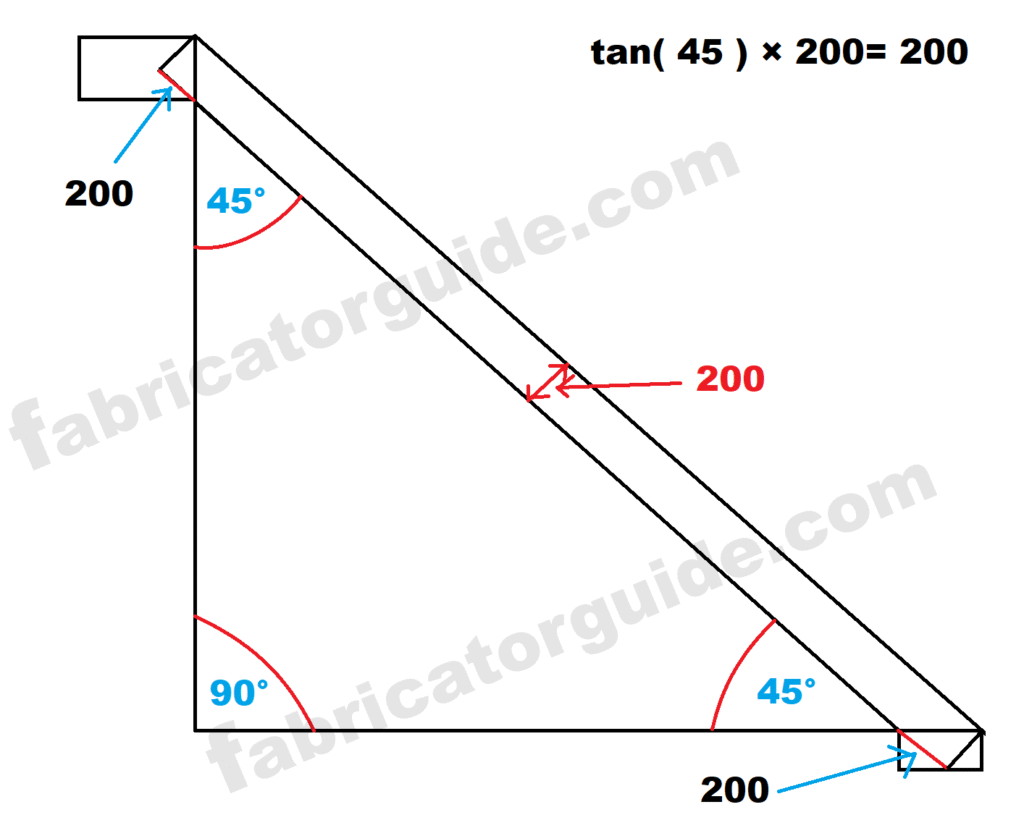

ऊपर दिए गए चित्र में अलग-अलग डिग्री में कैलकुलेशन करके दिखाया गया है

When you do degree cutting in a channel, the degree that is on the top will be the same degree that is used for cutting downwards.

And the degree that is on the bottom will be the same degree that is used for cutting up and downwards.

The calculation is shown in different degrees in the above picture
