Y type pipe branch formula 45° | Y branch formula 8 center line and 16 center line
अलग-अलग डिग्री में Y टाइप पाइप ब्रांच बनाने का फार्मूला
Formula for making Y type pipe branch in different degrees
C1 CUT BACK FORMULA
7.5° Degree Pipe OD × 3.7981 C1
11° Degree Pipe OD × 2.5138 C1
15° Degree Pipe OD × 1.866 C1
22.5° Degree Pipe OD × 1.2071 C1
30° Degree Pipe OD × 0.866 C1
45° Degree Pipe OD × 0.500 C1
60° Degree Pipe OD × 0.28869 C1
C2 CUT BACK FORMULA
7.5° Degree Pipe OD × 0.0328 C2
11° Degree Pipe OD × 0.04925 C2
15° Degree Pipe OD × 0.06698 C2
22.5° Degree Pipe OD × 0.0 C2
30° Degree Pipe OD × 0.13397 C2
45° Degree Pipe OD × 0.2071 C2
60° Degree Pipe OD × 0.28867 C2
यह सब जो फार्मूला दिया गया है पाइप के OD से गुणा करना है तो आपका कट बैक निकल जाएगा
आपको अलग-अलग डिग्री मेंबनाना हो तो उसके लिए यह सब अलग-अलग फार्मूला है
All these given formulas have to be multiplied with the OD of the pipe and then your cut back will be obtained.
If you want to make it in different degrees, then there are different formulas for that

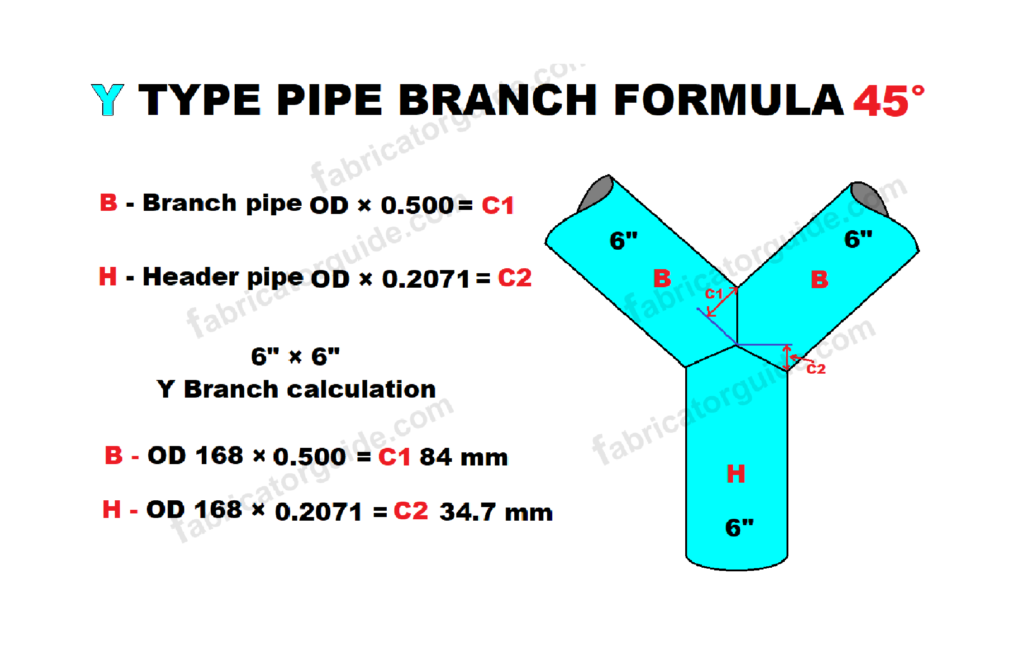

Y टाइप पाइप ब्रांच कैसे बनाते हैं फार्मूला के जरिए 45 डिग्री में
ऊपर दिए गए डिजाइन में 6 इंच पाइप के ऊपर Y ब्रांच बना कर दिखाया गया है फार्मूला के जरिए
How to make a Y type pipe branch in 45 degrees using formula
In the above design, a Y branch has been made on a 6 inch pipe using formula
Pipe size 6″ OD 168 mm
इस तरह कट बैक कैलकुलेशन करने के बाद 8 सेंटर लाइन में मार्किंग करने के लिए इस तरह कैलकुलेशन करें
After doing the cut back calculation in this way, do the calculation in this way for marking in 8 center lines
360° ÷ 8 = 45°
Sin( 45 ) × 34.7 = 24.5 mm
Sin( 45 ) × 84 = 59.3 mm
और इस तरह मार्किंग करें जैसे यह डिजाइन में दिखाया गया है
हैडर पाइप और ब्रांच पाइप कट बैक 8 सेंटर लाइन
And do the marking as shown in the design
Header pipe and branch pipe cut back 8 center line
अगर आप 16 सेंटर लाइन में मार्किंग करना चाहते हैं तो इस तरह कैलकुलेशन करें
Y टाइप पाइप ब्रांच कैसे बनाते हैं फार्मूला के जरिए 45 डिग्री में
Pipe size 6″ OD 168 mm
इस तरह कट बैक कैलकुलेशन करने के बाद 8 सेंटर लाइन में मार्किंग करने के लिए इस तरह कैलकुलेशन करें
After doing the cut back calculation in this way, do the calculation in this way for marking in 8 center lines
360° ÷ 16 = 22.5°
22.5° × 2 = 45°
22.5° × 3 = 67.5°
Sin( 22.5 ) × 34.7 = 13 mm
Sin( 45 ) × 34.7 = 24.5 mm
Sin( 67.5 ) × 34.7 = 32.2 mm
Sin( 22.5 ) × 84 = 32 mm
Sin( 45 ) × 84 = 59.3 mm
Sin( 67.5 ) × 84 = 77.6 mm
और इस तरह मार्किंग करें जैसे यह डिजाइन में दिखाया गया है
हैडर पाइप और ब्रांच पाइप कट बैक 16 सेंटर लाइन
And do the marking as shown in the design
Header pipe and branch pipe cut back 16 center line
