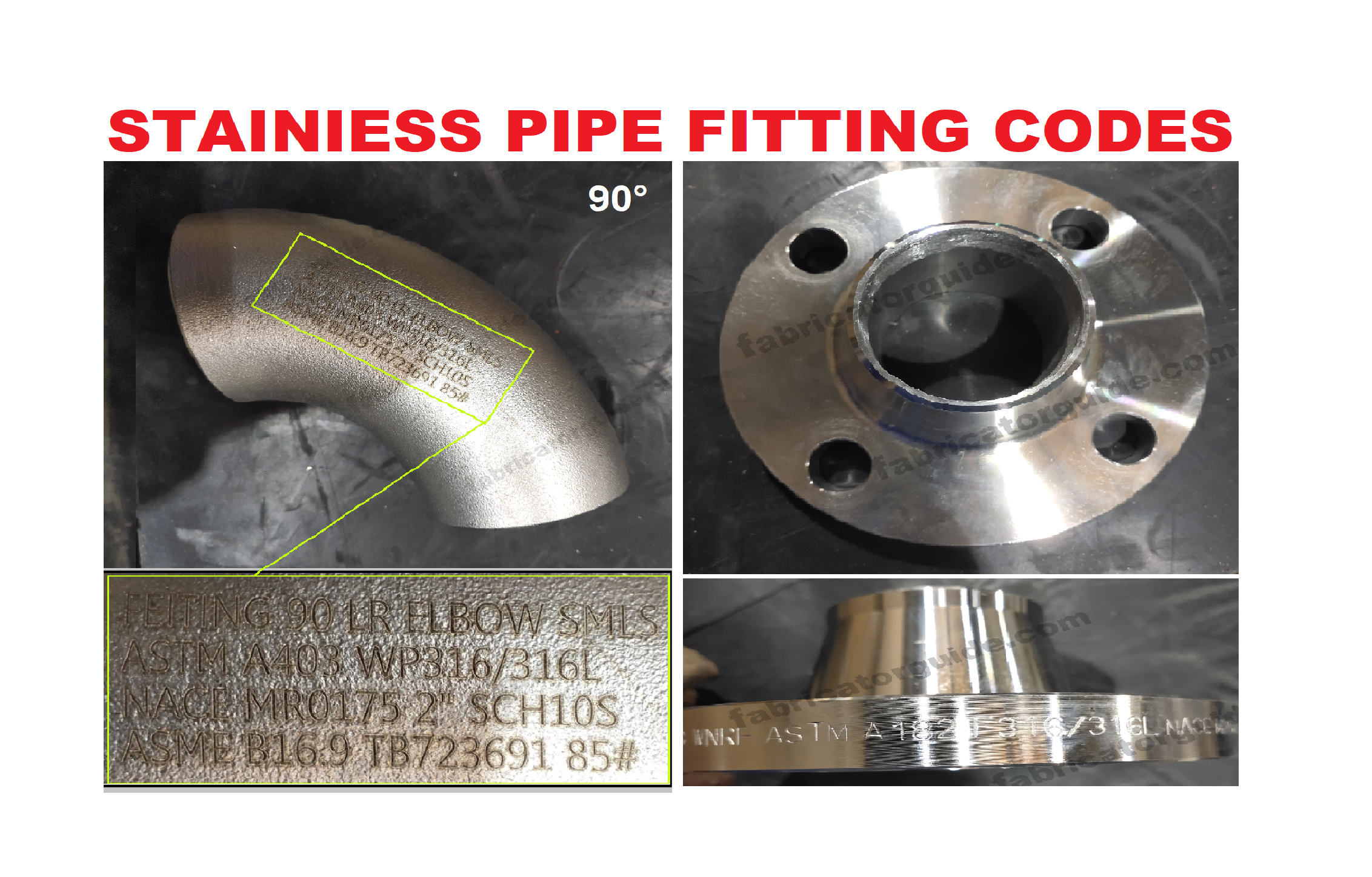

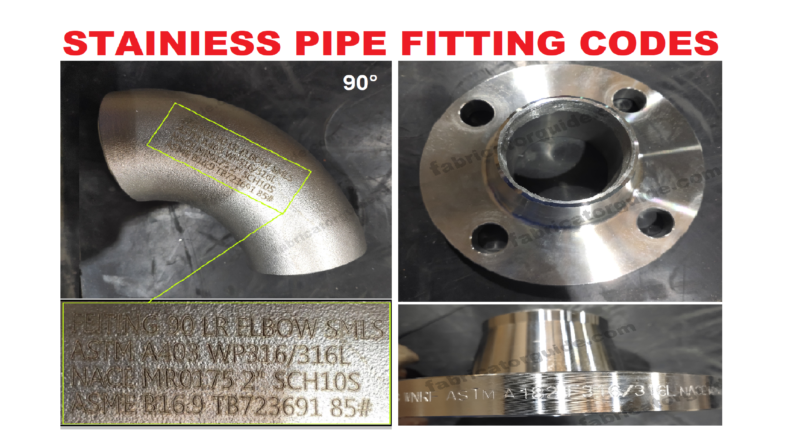

Stainless steel fittings elbow code | Pipe fittings metals codes

Pipe fittings code

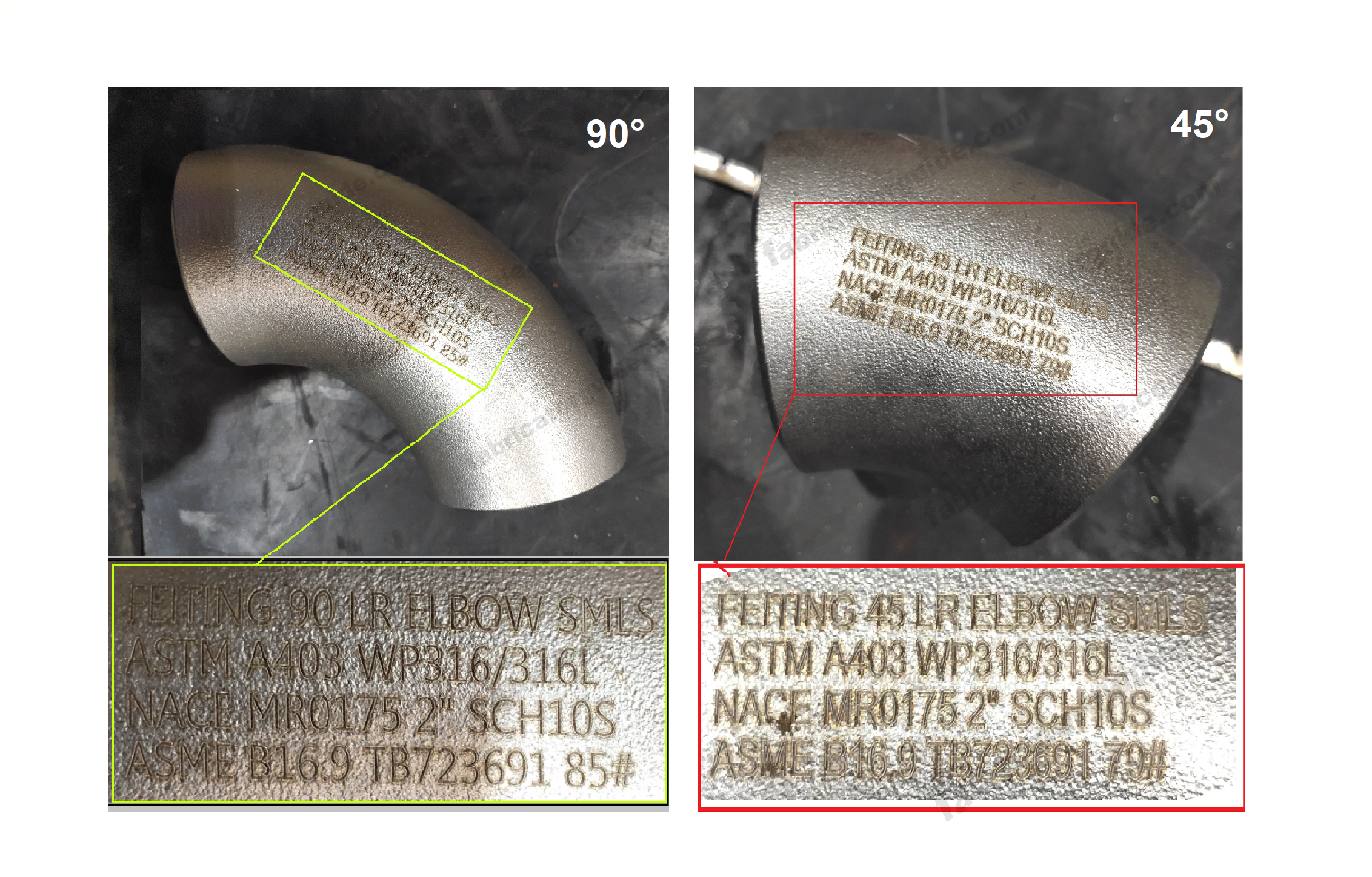

FITTING 45 LR ELBOW SMLS

FITTING 90 LR ELBOW SMLS

ASTM A403 WP316/316L

NACE MR0175 2″ SCH10S

ASME B16.9 TB723691 79#

Pipe fittings metal code

How to view pipe fittings codes

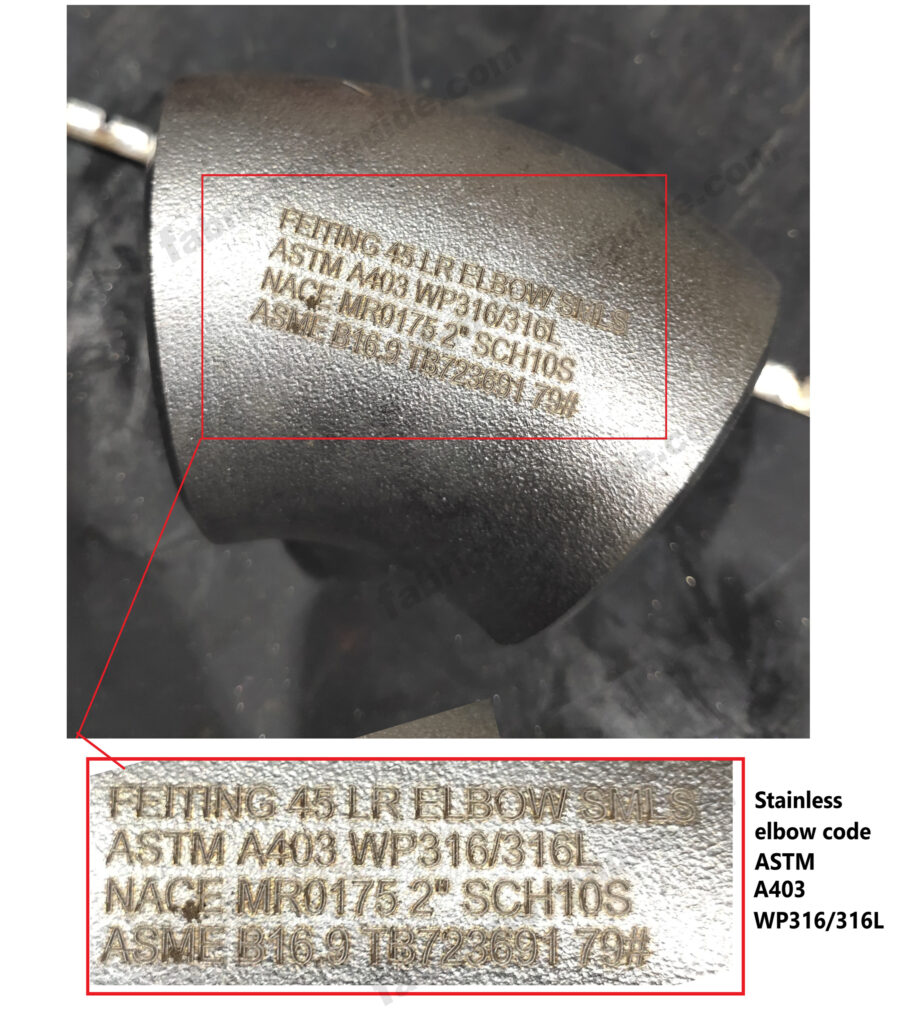

Stainless steel fittings elbow code

FITTING 45 LR ELBOW SMLS

ASTM A403 WP316/316L

NACE MR0175 2″ SCH10S

ASME B16.9 TB723691 79#

Pipe fittings codes maning

FITTING 45 =  degree

LR = LONG RADIUS

SMLS = SIMLESS

ASTM = AMIRCAN, SOCITY, TESTING, MATERIALS

A403 = Stainless steel  ELBOW FITTINGS CODE

WP 316 / 316L = Stainless steel METAL CODE

2″ =  ELBOW SIZE  2 inch

SCH10S  = SCHEDULE  ELBOW  WALL THICKNESS

ASME  = AMERICAN SOCIETY OF MECHANICAL ENGINEERS

16.9 =  BUTT WELDING

TB723691 =   ELBOW METAL HEAT NUMBER

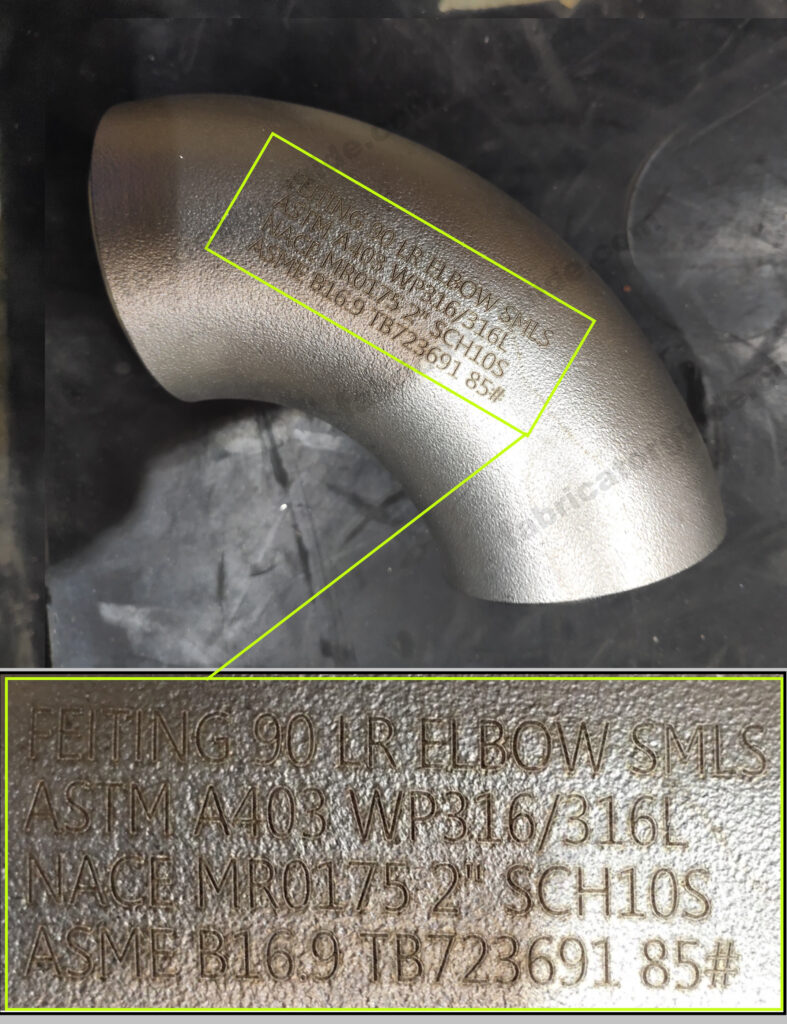

Stainless steel fittings elbow code

FITTING 90 LR ELBOW SMLS

ASTM A403 WP316/316L

NACE MR0175 2″ SCH10S

ASME B16.9 TB723691 79#

Pipe fittings codes maning

FITTING 90 =  degree

LR = LONG RADIUS

SMLS = SIMLESS

ASTM = AMIRCAN, SOCITY, TESTING, MATERIALS

A403 = Stainless steel  ELBOW FITTINGS CODE

WP 316 / 316L = Stainless steel METAL CODE

2″ =  ELBOW SIZE  2 inch

SCH10S  = SCHEDULE  ELBOW  WALL THICKNESS

ASME  = AMERICAN SOCIETY OF MECHANICAL ENGINEERS

16.9 =  BUTT WELDING

TB723691 =   ELBOW METAL HEAT NUMBER
