Steel structural Rafter degree & miter cutting formula

Please share post

structural shed fabrication drawing

structural shed roof fabrication drawing

structural shed degree roof fabrication drawing

how to view structural shed fabrication drawing

structural shed roof degree cutting calculation formula

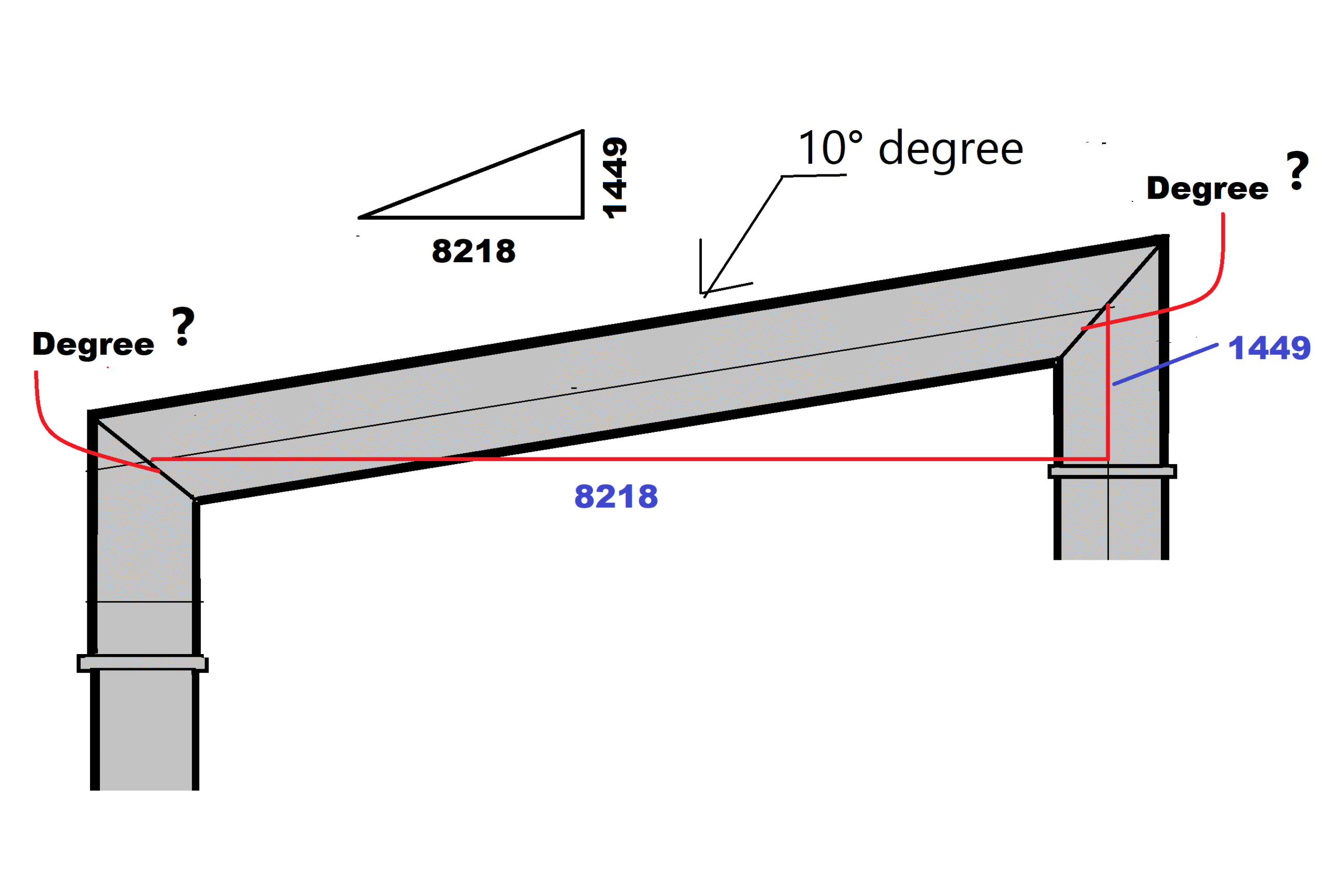

ये ड्राइंग के बारे में आज हम जानेंगे ये एक सेड का ड्राइंग है जिसमें रफ्टर डिग्री में लगाया गया है

रफ्टर का डिग्री निकालने का फार्मूला

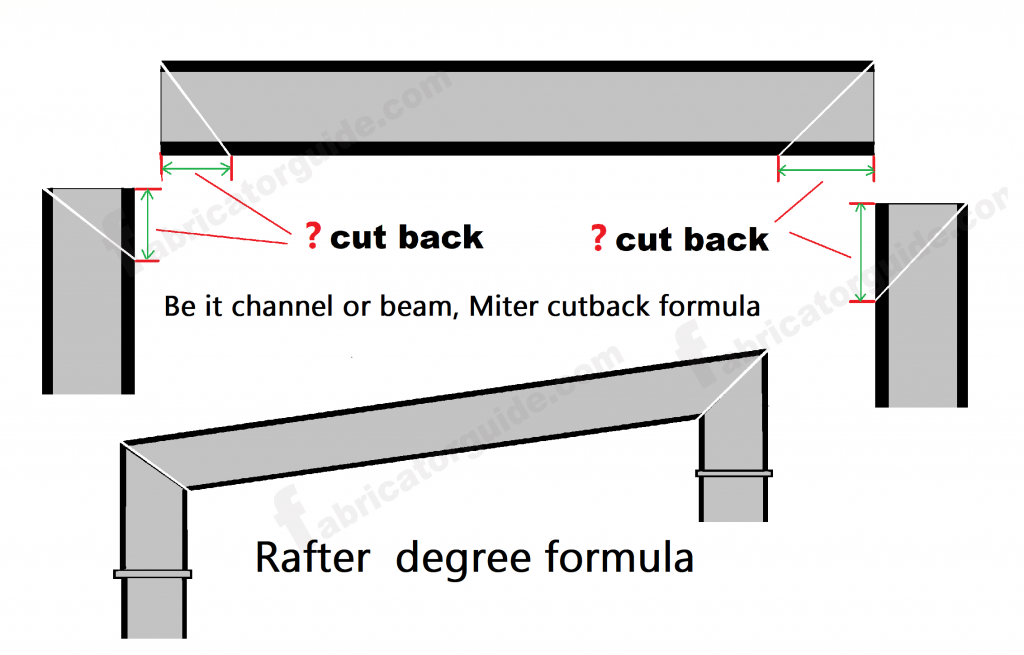

चैनल हो या बीम हो माईटर  कटबैक निकालने का फार्मूला

Today we will know about this drawing, this is a shed drawing in which the rafter is applied in degree.

Rafter degree degree formula

Be it channel or beam, Miter cutback formula

रफ्टर का डिग्री निकालने का फार्मूला दिया गया है

और रफ्टर के दोनों साइड जो चैनल हो या बीम हो माईटर कटिंग जो करना है उसका डिग्री निकालने का फार्मूला बताया गया है



The formula for finding the degree of the rafters has been given

And the formula for finding the degree of the channel or beam on both sides of the rafters for which the miter cutting is to be done has been given

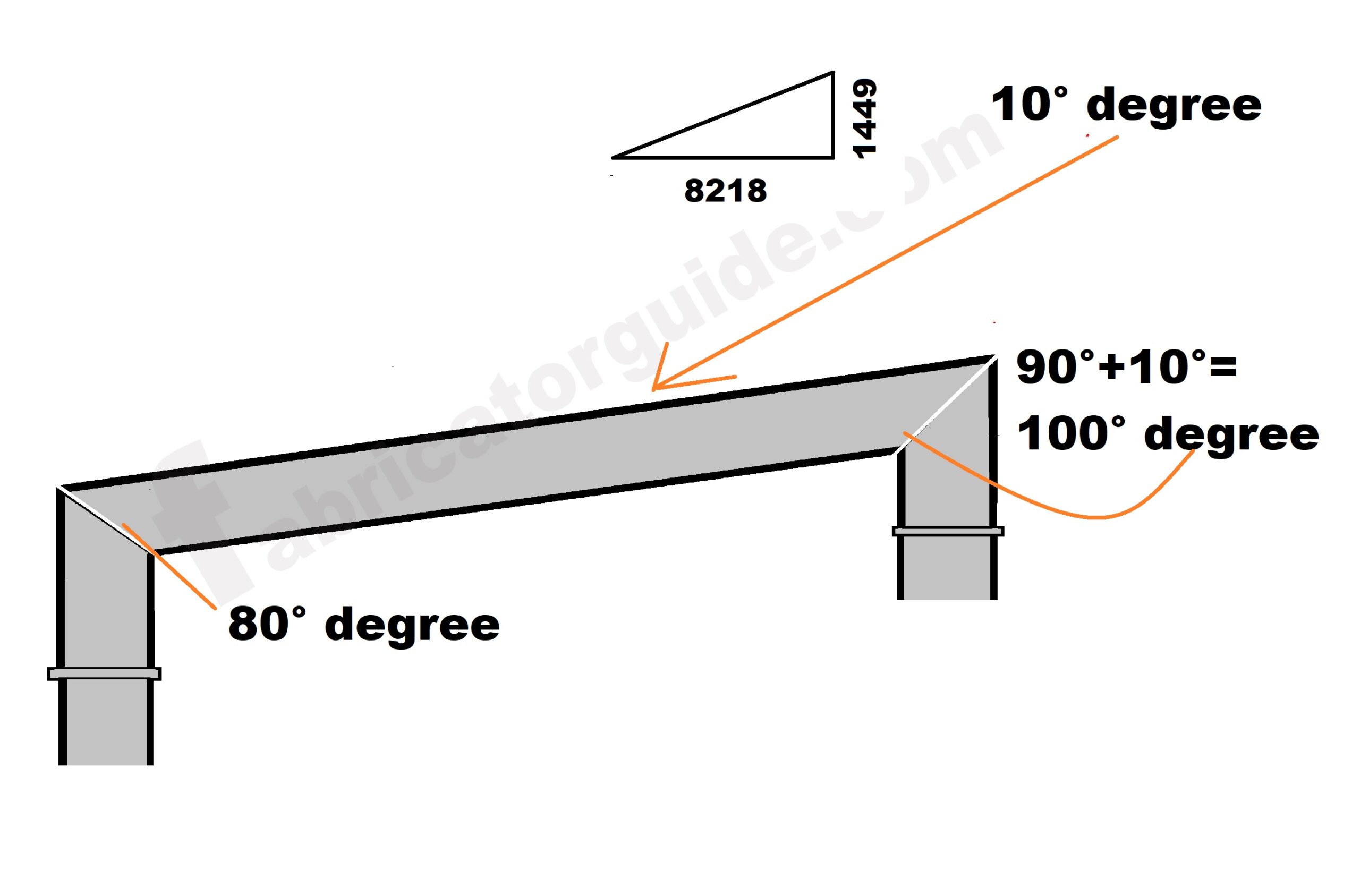

tan-1( 1449 ÷ 8218 = 10° degree

होरिजेंटल पोजिशन में जो भी है या चैनल है वह 10 डिग्री में रहेगा इस तरह कैलकुलेशन करें



वर्टिकल वाला दोनों चैनल अगर एक बराबर होता तो दोनों साइड 90 डिग्री और 90 डिग्री माइटर कटिंग किया जाता

लेकिन एक तरफ वर्टिकल वाले से अगर आप डिग्री देखेंगे तो 10 डिग्री ऊपर की तरफ जा रहा है

तो 90 डिग्री से 10 डिग्री  माइनस हो जा रहा है तो वहां पर 80 डिग्री आएगा

और दूसरे तरफ वर्टिकल वाला चैनल के तरफ देखेंगे तो उस तरफ से नीचे की तरफ 10 डिग्री डाउन हो रहा है

तो वहां पर 90 डिग्री में 10 डिग्री प्लस हो जा रहा है तो वहां पर जो डिग्री रहेगा वह 100 डिग्री रहेगा

If both the vertical channels were equal, then 90 degree and 90 degree miter cutting would be done on both sides

But if you look at the degree from one side of the vertical channel, it is going 10 degrees upwards

So 90 degrees is going down by 10 degrees, so it will be 80 degrees there

And if you look at the other side of the vertical channel, it is going down by 10 degrees from that side

So there 90 degrees is going up by 10 degrees plus, so the degree there will be 100 degrees





फिटिंग करने के लिए जब आप मैटर कटिंग करेंगेतो किस तरफ कितना डिग्री कटिंग होगा

जिस तरफ 80 डिग्री है उसे तरफ दोनों चैनल में 40 डिग्री 40° कटिंग किया जाएगा

और जिस तरफ 100 डिग्री आया है उस तरफ दोनों तरफ चैनल में 50 डिग्री 50 डिग्री कटिंग किया जाएगा

When you do miter cutting for fitting, how much degree of cutting will be done on which side

On the side where the angle is 80 degrees, 40 degrees 40 degrees cutting will be done on both the channels

And on the side where the angle is 100 degrees, 50 degrees 50 degrees cutting will be done on both the channels

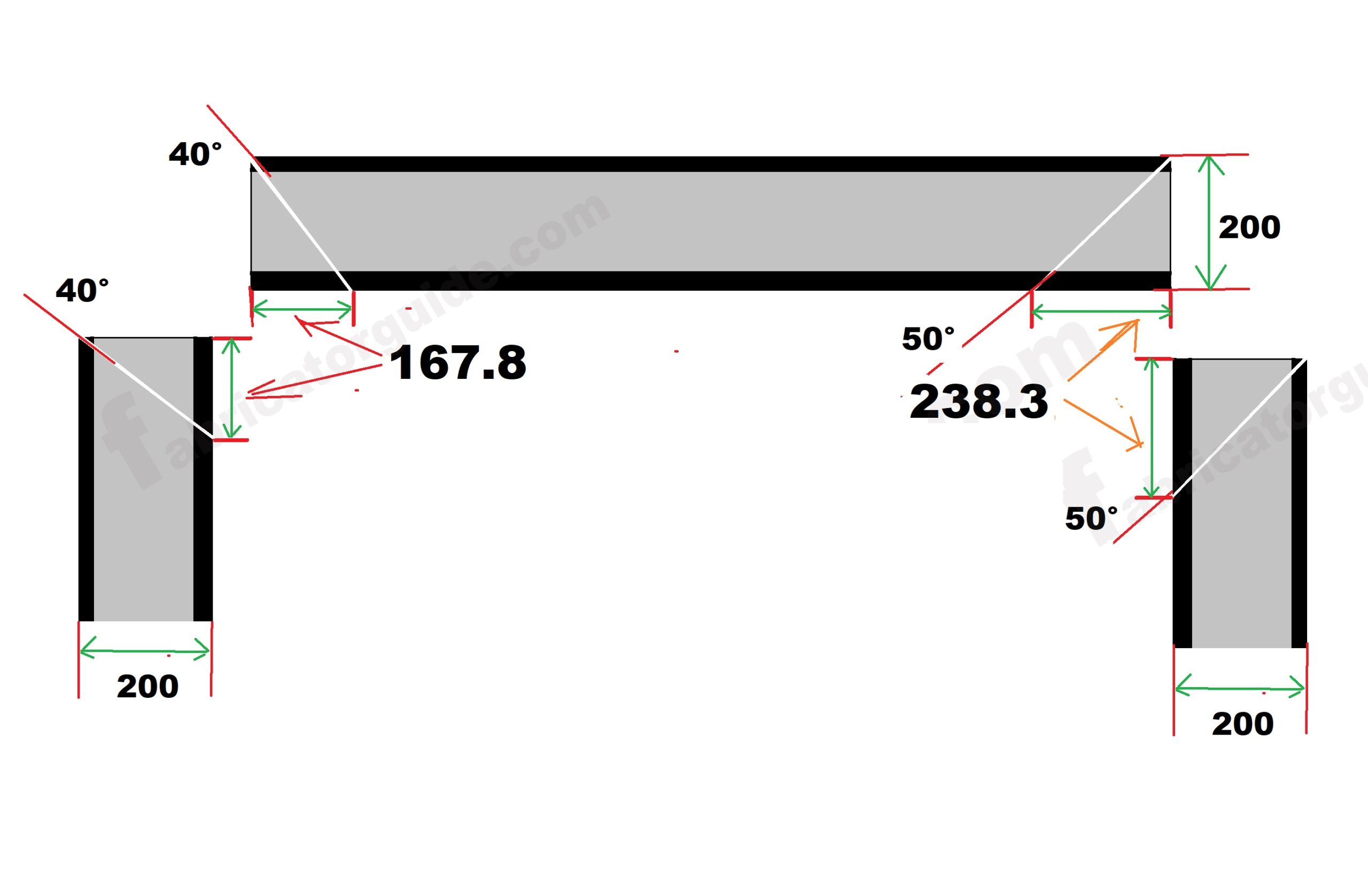

चैनल का वेब डाइमेंशन 200 mm लिया गया है

डिग्री कटिंग करने के लिए कटबैक इस तरह कैलकुलेशन करें

tan( 40 ) × 200 = 167.8 mm

tan( 50 ) × 200 = 238.3 mm





तो फिर मुझे उम्मीद है कि आपको या कैलकुलेशन समझ में आ गया होगा ज्यादा जानकारी के लिए आप हमारे यूट्यूब चैनल विजिट करें

Then I hope you have understood this calculation. For more information, visit our YouTube channel.
